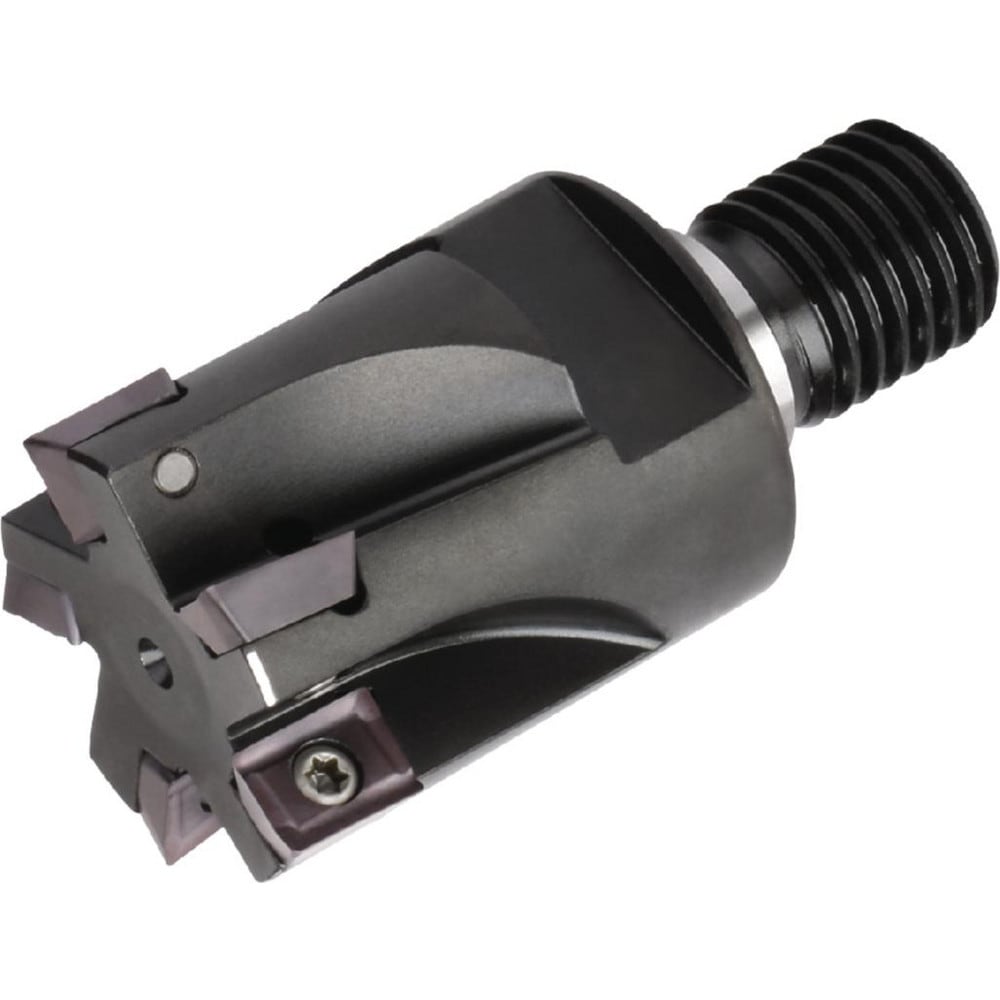

Brand: Widia / Part #: 2223036

Brand: Widia / Part #: 2223036


Item #: 97481162
Brand: Widia
Model #: 2223036

Product Specifications

Minimum Cutting Diameter (mm) 25.00
Maximum Cutting Diameter (mm) 25.00
Maximum Depth of Cut (mm) 9.50
Cutter Style M680
Shank Type Modular Connection
Shank Diameter (mm) 25.0000
Maximum Ramping Angle 0 ?
Insert Holding Method Screw
Shank Taper Size None
Overall Length (mm) 30.0000
Tool Material Steel
Series M680
Flute Type Spiral
Lead Angle 90
Shank Length (mm) 22.000
Head Length (mm) 30.00
Modular Connection Size M12
Maximum RPM 9500.000
Tool Application Milling
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Rake Negative (Radial); Positive (Axial)
Complete Insert Compatibility AONT10..
Insert Compatibility AONT10..
Hand of Holder Right Hand
Rake Angle -12.00 ? (Radial);3.00 ? (Axial)
Multi-Use Tool No
ISO Number 12396931400
Manufacturers Catalog Number 12396931400
Usable Length (mm) 30.000
Number Of Flutes 3
Number Of Cutter Inserts 3
Coolant Through Yes
$328.30
