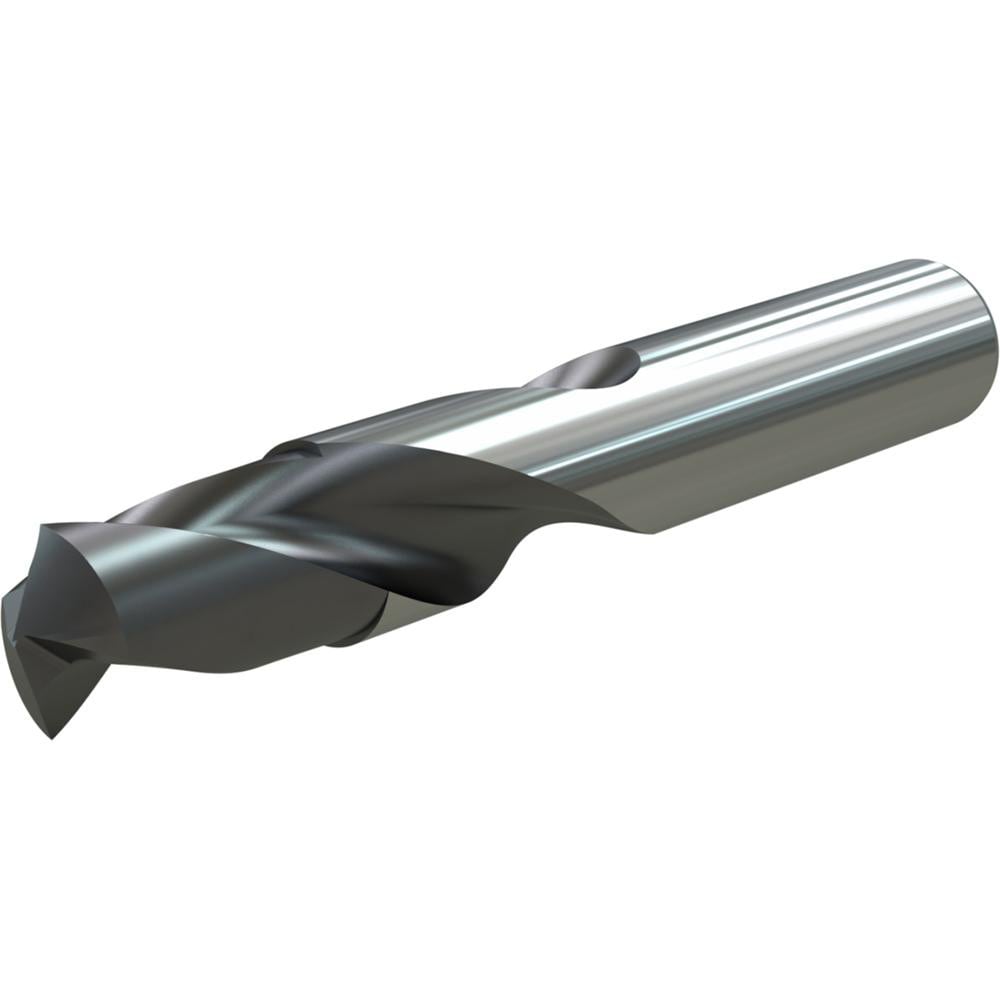

Brand: Widia / Part #: 4140256

Brand: Widia / Part #: 4140256


Item #: 99260226
Brand: Widia
Model #: 4140256

Product Specifications

Drill Bit Size (mm) 17.70
Tool Material Solid Carbide
Cutting Direction Right Hand
Coating/Finish TiAlN
Drill Point Angle 140
Spiral Type Regular Spiral
Flute Type Helical
Point Type Thinned
Coolant Through Yes
Shank Type Cylindrical
Number Of Flutes 2
Drill Tip Finish/Coating TiAlN
Overall Length (mm) 123.0000
Shank Diameter (mm) 18.0000
Series VDS401A
Web Thinning Web-Thinned
Drill Length Type Screw Machine Length
Maximum Drilling Depth (mm) 51.00
Shank Length (mm) 48.000
Drill Point Length (mm) 3.07
Flute By Diameter Ratio 3xD
Tool Performance General Purpose
Drill Bit Diameter Tolerance -0.018/0.000 mm
Flute Length (mm) 73.00
Drill Bit Grade General Purpose
Material Grade Carbide
$327.30
