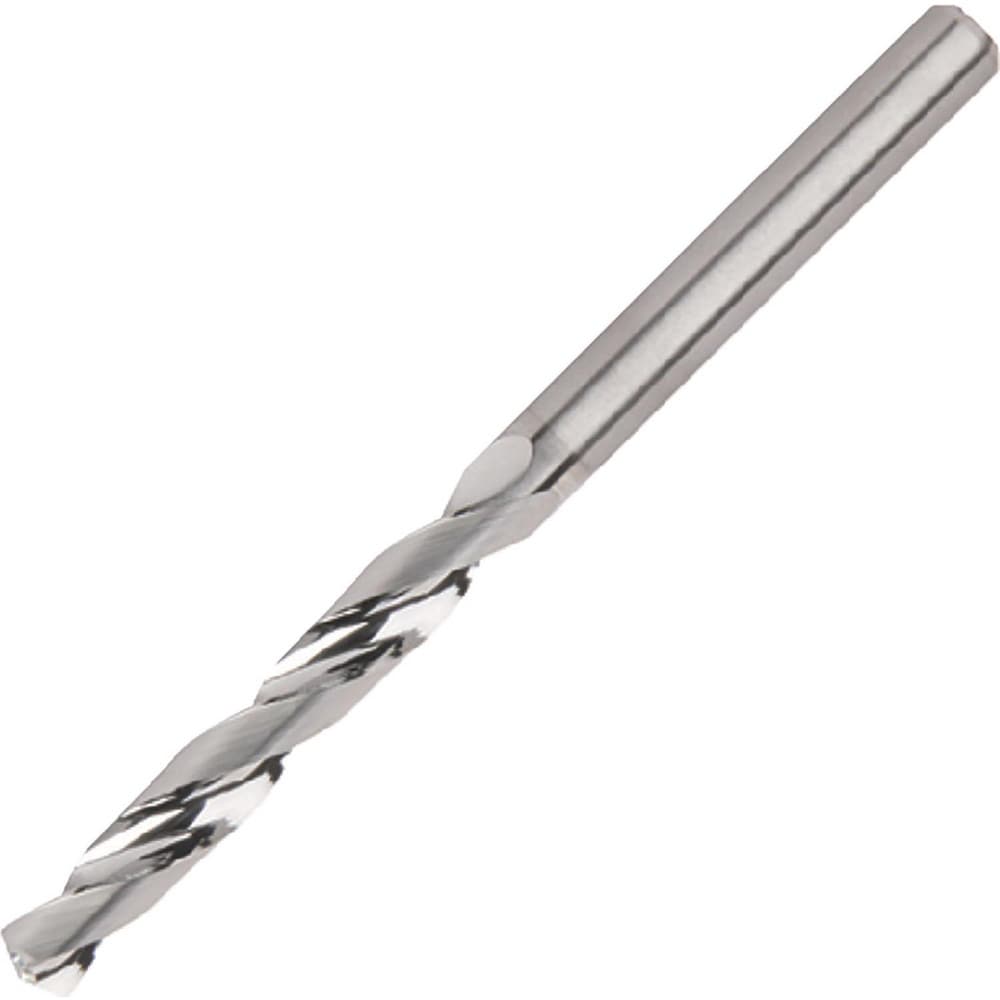

Brand: Widia / Part #: 6288612
Item #: 99826083
Brand: Widia
Model #: 6288612
Product Specifications
Drill Bit Size (mm) | 16.00 |
Drill Bit Material | Solid Carbide |
Cutting Direction | Right Hand |
Drill Bit Finish/Coating | Uncoated |
Drill Point Angle (Degrees) | 135 |
Spiral Type | Regular |
Flute Type | Spiral |
Point Type | Standard |
Coolant Through | Yes |
Shank Type | Cylindrical |
Number of Flutes | 2 |
Overall Length (mm) | 133.0000 |
Flute Length (mm) | 83.00 |
Series | TDS422 |
Tool Application | Drilling |
Flute Length x Diamter Ratio | 4 |
Flute By Diameter Ratio | 4xD |
Shank Diameter (mm) | 16.0000 |
Maximum Drilling Depth (mm) | 63.00 |
Shank Length (mm) | 48.000 |
Number of Flats | 2 |
Drill Point Length (mm) | 2.77 |
Drill Bit Diameter Tolerance | 0.007000 to 0.025000 mm |
Tool Performance | General Purpose |
Double Margin | No |
Drill Bit Grade | WN15HD |
Material Grade | WN15HD |
