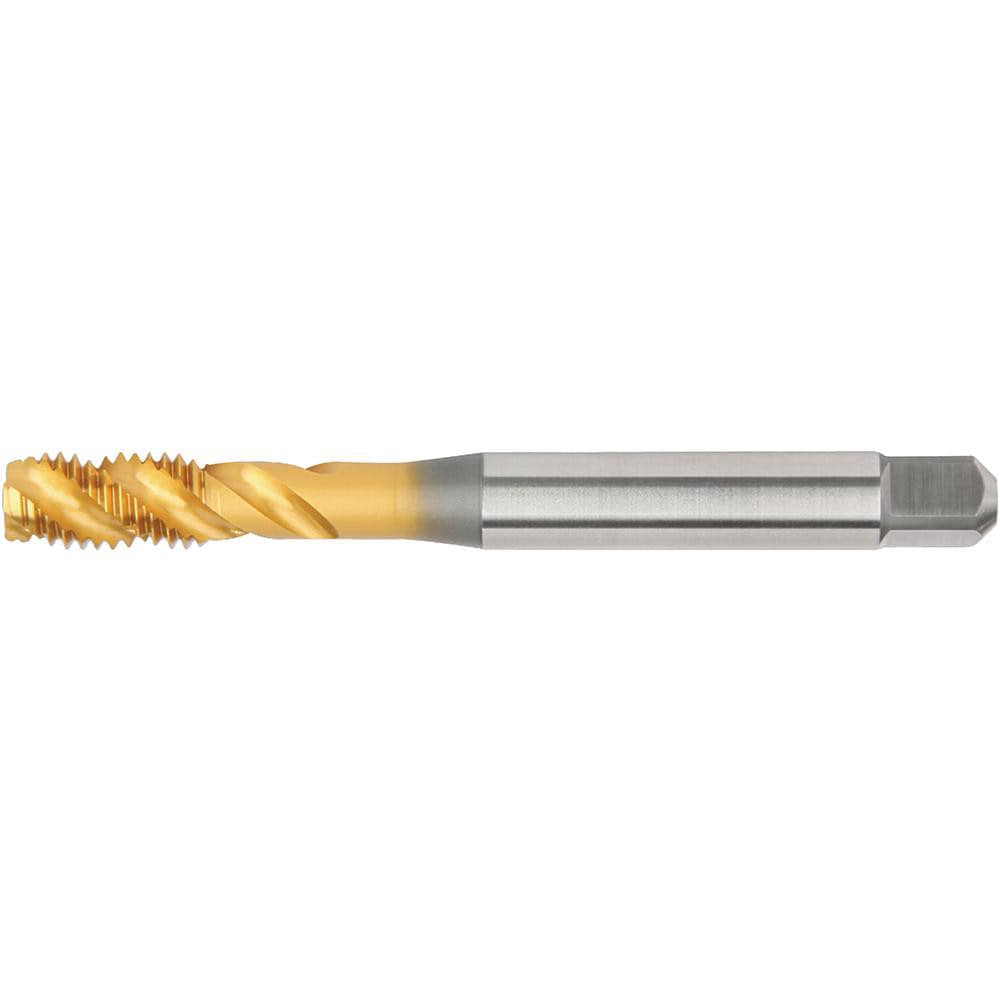

Brand: Widia / Part #: 5472628

Brand: Widia / Part #: 5472628


Item #: 97244263
Brand: Widia
Model #: 5472628

Product Specifications

Thread Size (Inch) 3/4-16
Chamfer Modified Bottoming
Thread Limit H5
Class Of Fit 2B
Number Of Flutes 4
Material High Speed Steel
Threads per Inch 16
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish TiN
Coolant Through No
Thread Length (Decimal Inch) 1.1800
Overall Length (Decimal Inch) 5.5100
Thread Depth (Decimal Inch) 1.8100
Thread Pitch (Decimal Inch) 0.0625
Thread Standard UNF
Material Grade WU41EG
Shank Diameter (Decimal Inch) 0.6299
Square Size (Decimal Inch) 0.4720
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series VTSFT
$156.85
