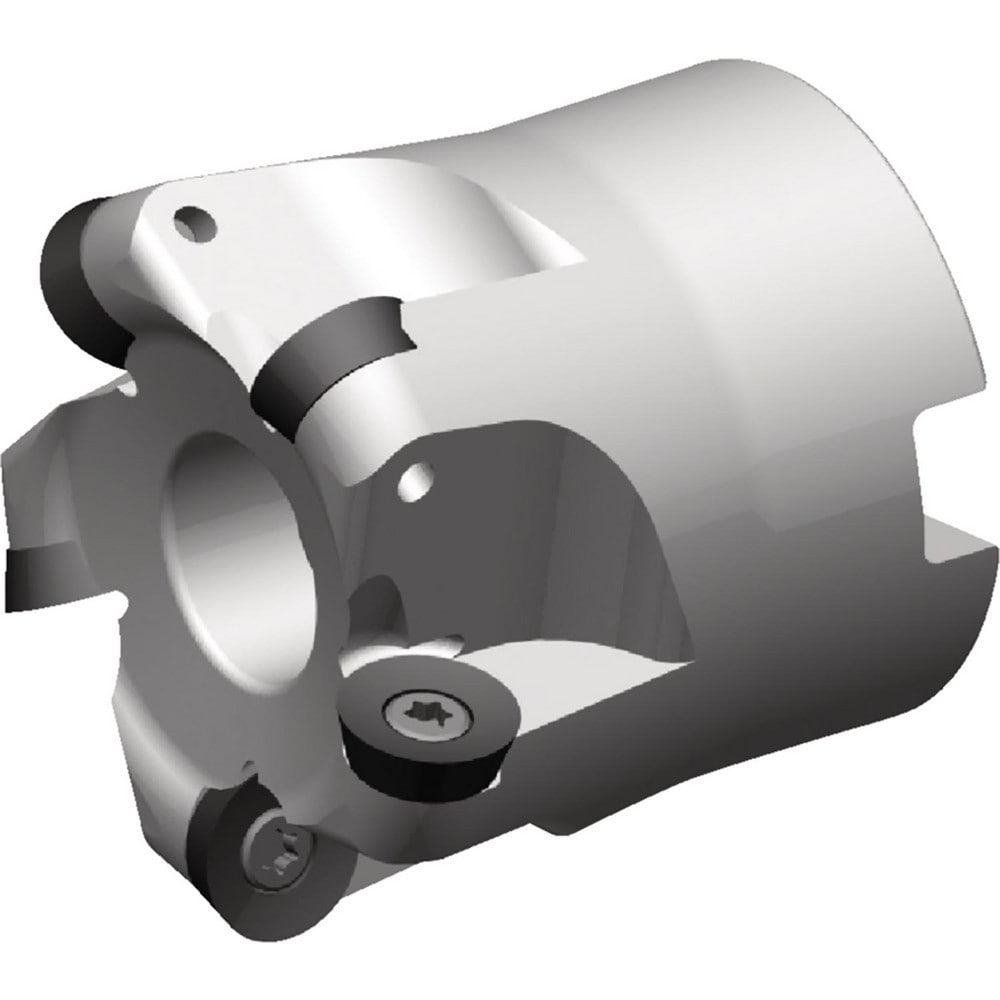

Brand: Widia / Part #: 3930968

Brand: Widia / Part #: 3930968


Item #: 97196075
Brand: Widia
Model #: 3930968

Product Specifications

Minimum Cutting Diameter (mm) 28.00
Maximum Cutting Diameter (mm) 40.00
Maximum Depth of Cut (mm) 6.00
Arbor Hole Diameter (mm) 16.00
Compatible Insert Size Code RD.X12T3..
Maximum Ramping Angle 9.30 degree
Cutter Style M170
Cutting Direction Right Hand
Insert Holding Method Screw
Series M170
Hub Diameter (Decimal Inch) 1.4567
Overall Height (Mm - 5 Decimals) 40.00
Maximum RPM 7000
Tool Application Profiling; Pocketing; Milling; Slotting; Ramping; Face Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; S; H; K; M
Number Of Cutter Inserts 4
Coolant Through Yes
