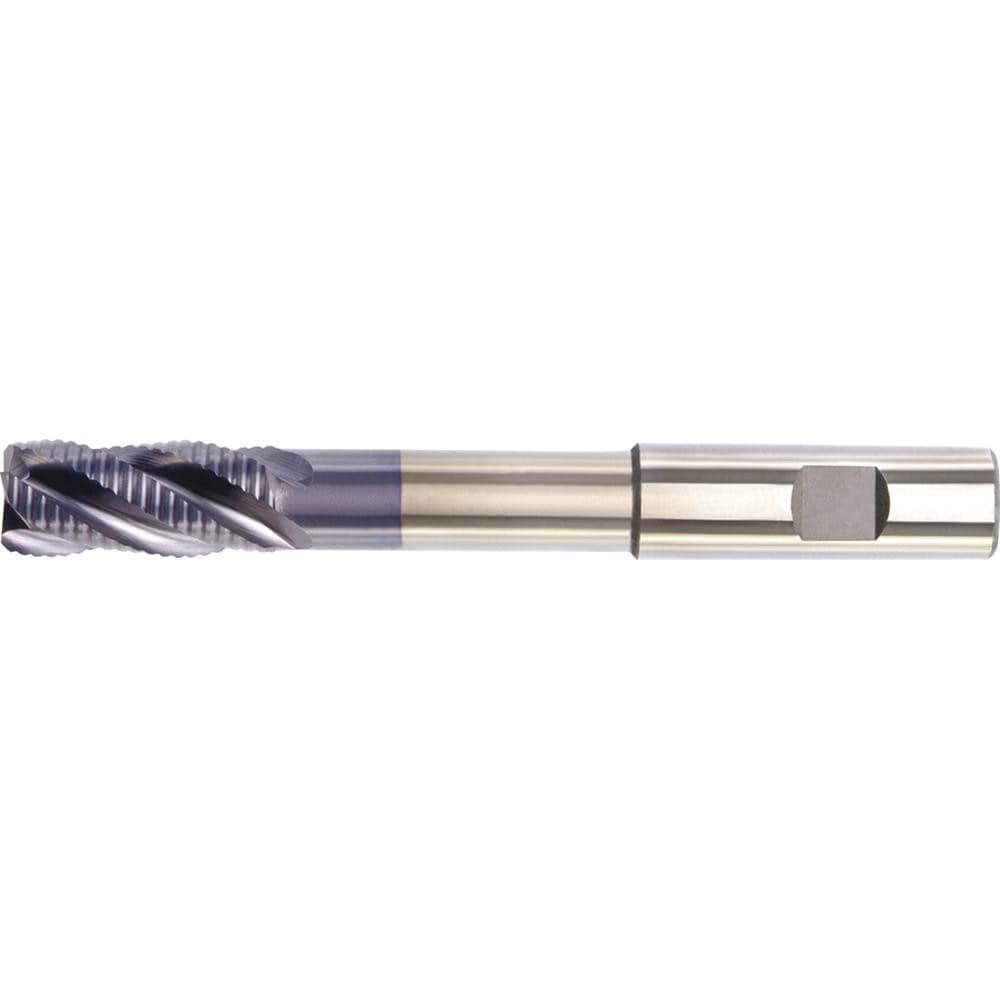

Brand: Widia / Part #: 2836059
Item #: 52654001
Brand: Widia
Model #: 2836059
Product Specifications
| Mill Diameter (Inch) | 1-1/4 |
| Chamfer Width (Decimal Inch) | 0.0590 |
| Coating/Finish | TiAlN |
| End Mill Material | Cobalt |
| Number Of Flutes | 6 |
| Single Or Double End | Single |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (mm) | 6.50 |
| Length of Cut (Inch) | 2 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 6.5000 |
| Chipbreaker | Yes |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Neck Diameter (Decimal Inch) | 1.1750 |
| Reach Length (Decimal Inch) | 4.0000 |
| Reach Length (Inch) | 4 |
| Minimum Helix Angle | 55.00 |
| Maximum Helix Angle | 55.00 |
| Primary Workpiece Material | Super Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Series | 6TNR |
