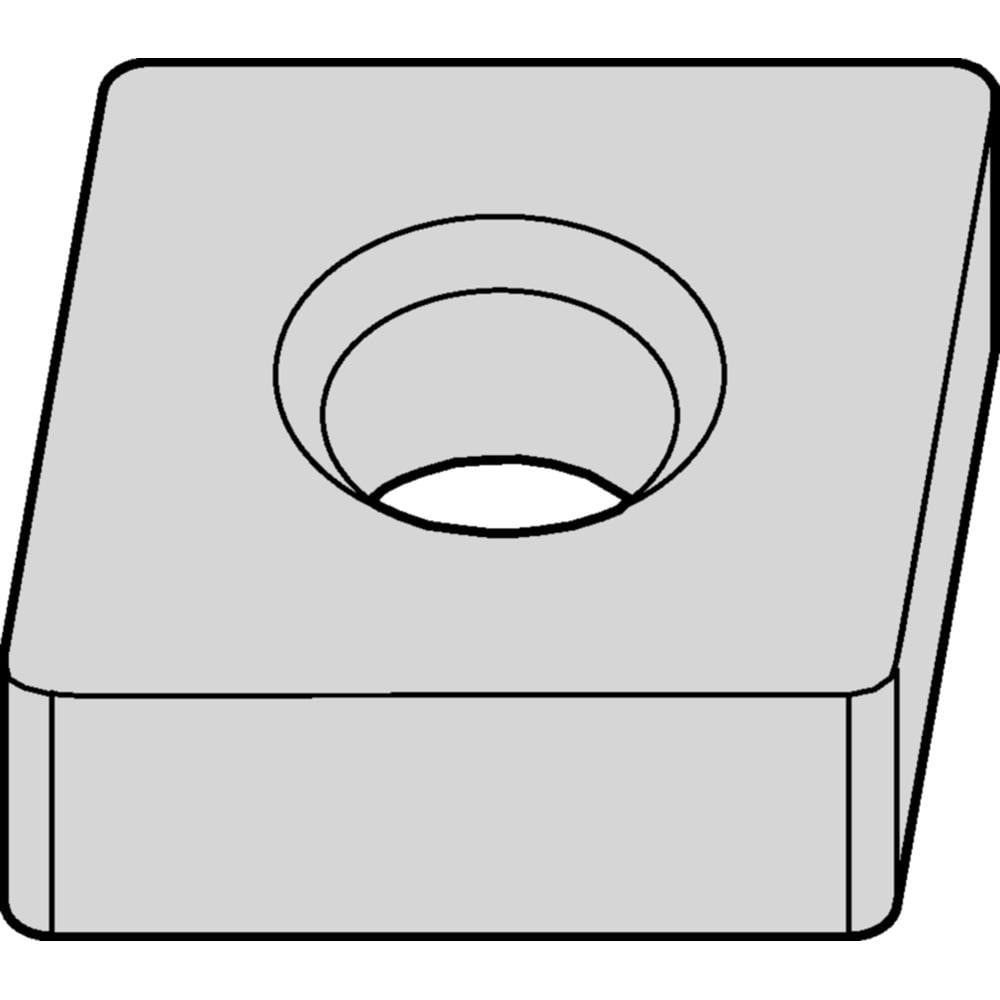

Brand: Widia / Part #: 4171599

Brand: Widia / Part #: 4171599


Item #: 94035730
Brand: Widia
Model #: 4171599

Product Specifications

Insert Style CNMA
Insert Shape Code C
Insert Size Code 543
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade WK05CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2500
Maximum Depth of Cut (Decimal Inch) 0.3173
Inscribed Circle (Decimal Inch) 0.6250
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMA
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6346
Number Of Cutting Edges 4
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code CNMA543
Iso Code CNMA160612
Manufacturers Catalog Number CNMA543
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker None
Style CNMA
Width (Decimal Inch - 4 Decimals) 0.6250
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$13.84
