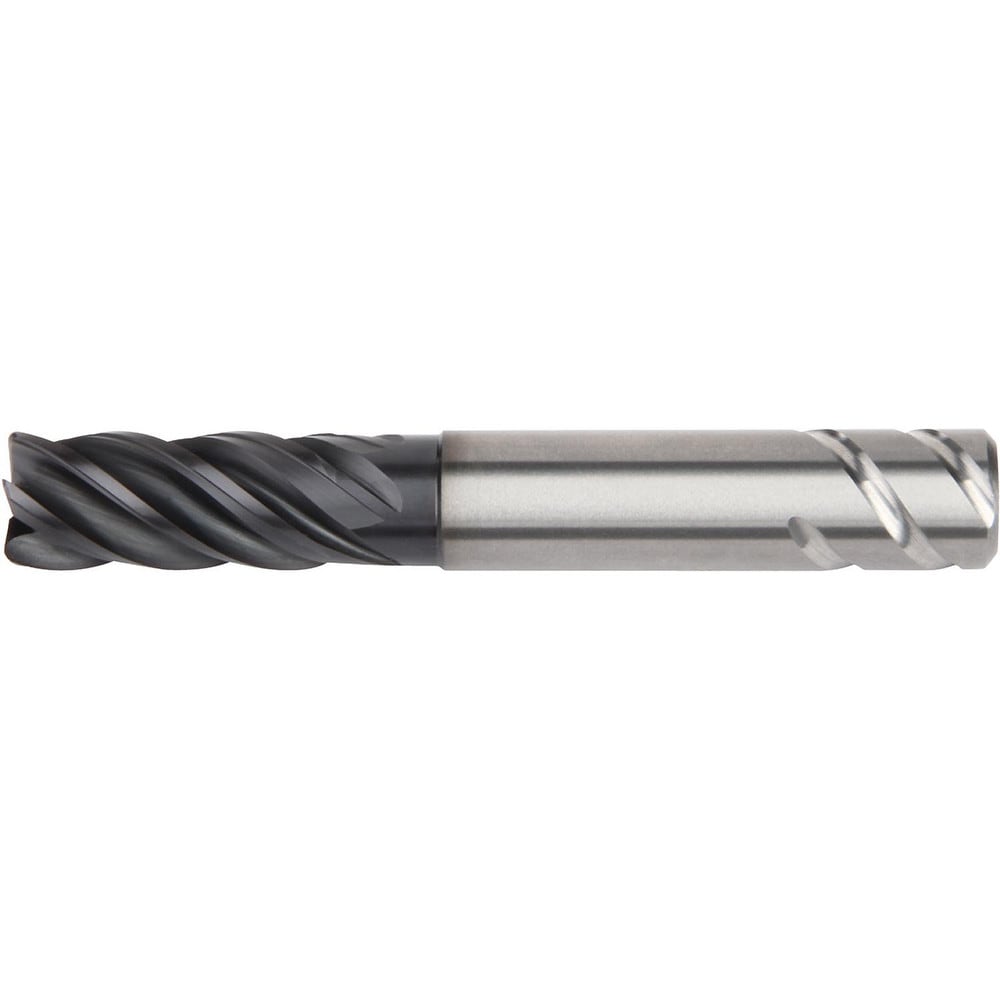

Brand: Widia / Part #: 6168978

Brand: Widia / Part #: 6168978


Item #: 33969304
Brand: Widia
Model #: 6168978

Product Specifications

Mill Diameter (Inch) 3/4
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 5
Overall Length (Inch) 4
Length of Cut (Inch) 1
Cutting Direction Right Hand
Mill Diameter (Decimal Inch) 0.7500
Flute Direction Right Hand
Overall Length (Decimal Inch) 4.0000
Chipbreaker No
Length Of Cut (Decimal Inch - 4 Decimals) 1.0000
Length Type Regular
Flute Type Helical
Extended Reach Yes
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Neck Diameter (mm) 0.70
Neck Diameter (Decimal Inch) 0.7050
Minimum Helix Angle 38.00
Maximum Helix Angle 38.00
Primary Workpiece Material Hard Material; High Temperature Alloy; Steel
Primary Workpiece Material Code P; S; H
Secondary Workpiece Material Stainless Steel
Secondary Workpiece Material Code M
Material Grade WS15PE
Series 5VNE
$325.09
