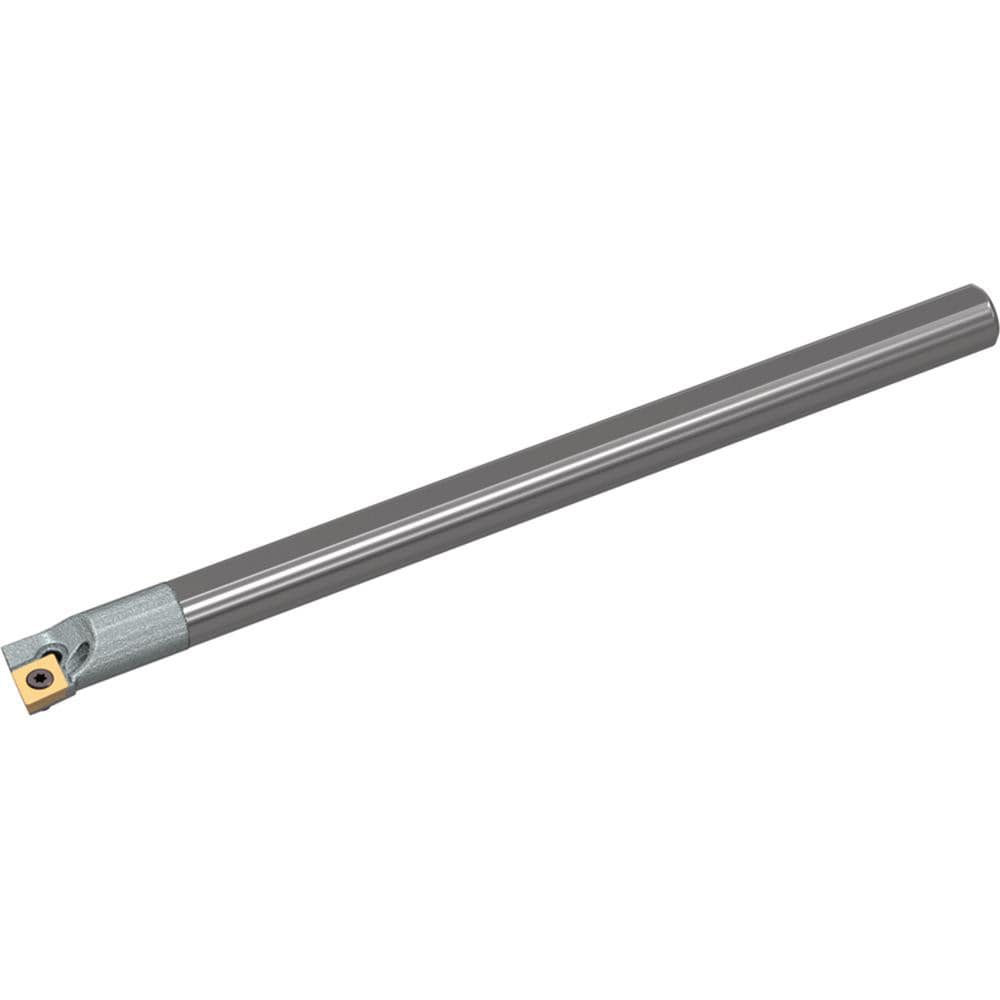

Brand: Widia / Part #: 5093094

Brand: Widia / Part #: 5093094


Item #: 02768919
Brand: Widia
Model #: 5093094

Product Specifications

Minimum Bore Diameter (mm) 11.000
Maximum Bore Depth (mm) 56.00
Toolholder Style SCLPR
Tool Material Carbide
Shank Diameter (mm) 8.0000
Hand of Holder Right Hand
Overall Length (mm) 123.2500
Compatible Insert Size Code CP..060204
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle -6.000
Lead Angle 95.000
Series E-SCLP
Insert Inscribed Circle (Inch) 1/4
Compatible Insert Thickness (Decimal Inch) 0.0938
Compatible Insert Thickness (mm) 2.38
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 9.88
Center to Cutting Edge (mm) 5.88
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0938
Insert Thickness (Inch) 3/32
Coolant Hole Diameter (mm) 2.36
Number of Inserts Included in Order 0
Manufacturers Catalog Number E08KSCLPR06A
Radial Rake 0
Coolant Through Yes
$325.56
