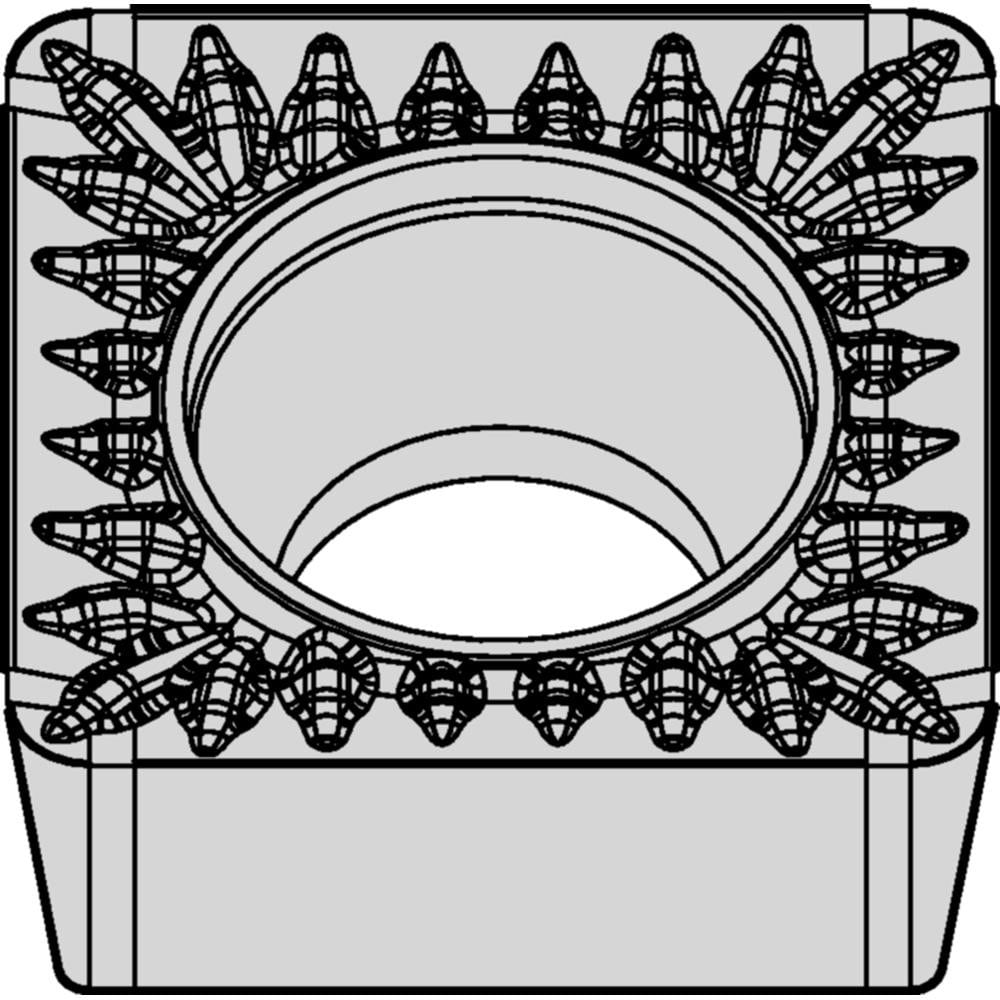

Brand: Widia / Part #: 6730906

Brand: Widia / Part #: 6730906


Item #: 95241691
Brand: Widia
Model #: 6730906

Product Specifications

Insert Style SCMT
Insert Shape Code S
Insert Size Code 3251
Insert Shape Square
Coating/Finish TiCN; Al2O3
Manufacturer Grade WK15CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 90.00
Relief Angle 7.000
Series SCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3750
Number Of Cutting Edges 4
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code SCMT3251MP
Iso Code SCMT09T304MP
Manufacturers Catalog Number SCMT3251MP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker MP
Style SCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
