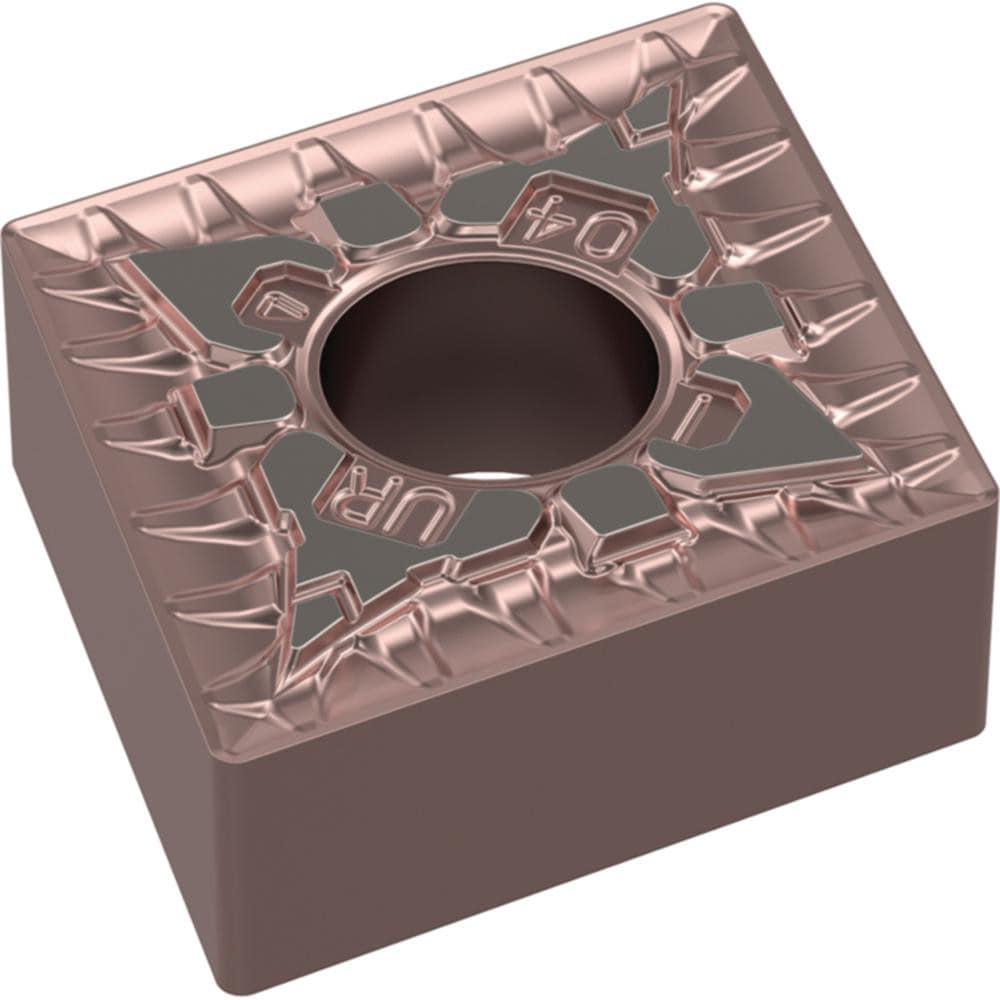

Brand: Widia / Part #: 4169961

Brand: Widia / Part #: 4169961


Item #: 93323673
Brand: Widia
Model #: 4169961

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 433
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WP35CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Ansi Code CNMG433UR
Iso Code CNMG120412UR
Manufacturers Catalog Number CNMG433UR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UR
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.14
