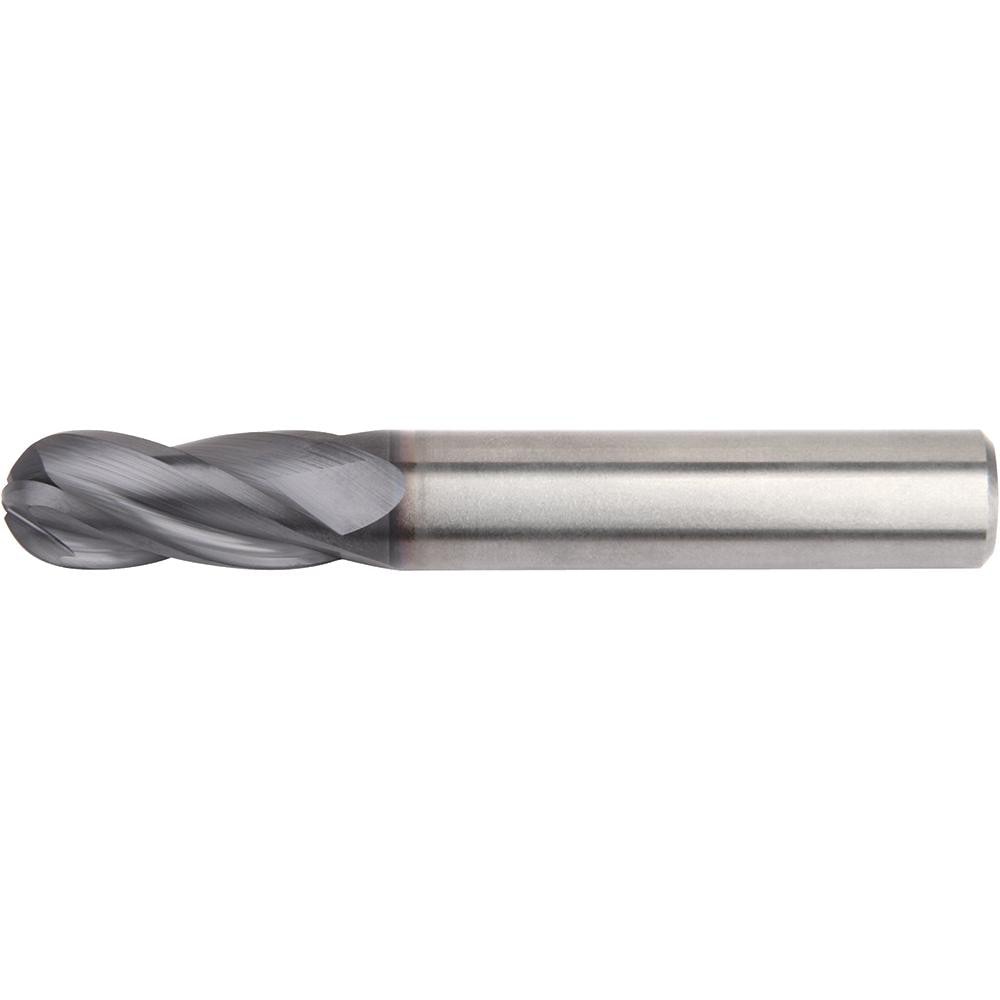

Brand: Widia / Part #: 5825665

Brand: Widia / Part #: 5825665


Item #: 33978768
Brand: Widia
Model #: 5825665

Product Specifications

Mill Diameter (Inch) 1/4
Mill Diameter (Decimal Inch) 0.2500
Length of Cut (Inch) 1-1/2
End Mill Material Solid Carbide
Coating/Finish TiAlN
Chipbreaker No
Number Of Flutes 4
End Type Single
Extended Reach No
Undercutting No
Helix Style Medium
Material Removal Type Finishing
Shank Diameter (Inch) 1/4
Shank Diameter (Decimal Inch) 0.2500
Nose Radius (Decimal Inch) 0.1250
Reach Length (Inch) 1-1/2
Reach Length (Decimal Inch) 1.5000
Overall Length (Inch) 4
Overall Length (Decimal Inch) 4.0000
Maximum Helix Angle 30.00
Minimum Helix Angle 30.00
Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium
Primary Workpiece Material Code P; S; H; K; M; N
Material Grade TiAlN
Flute Direction Right Hand
Cutting Direction Right Hand
Series I4B
Flute Type Medium
Coolant Through No
Length Of Cut (Decimal Inch - 4 Decimals) 1.5000
$27.23
