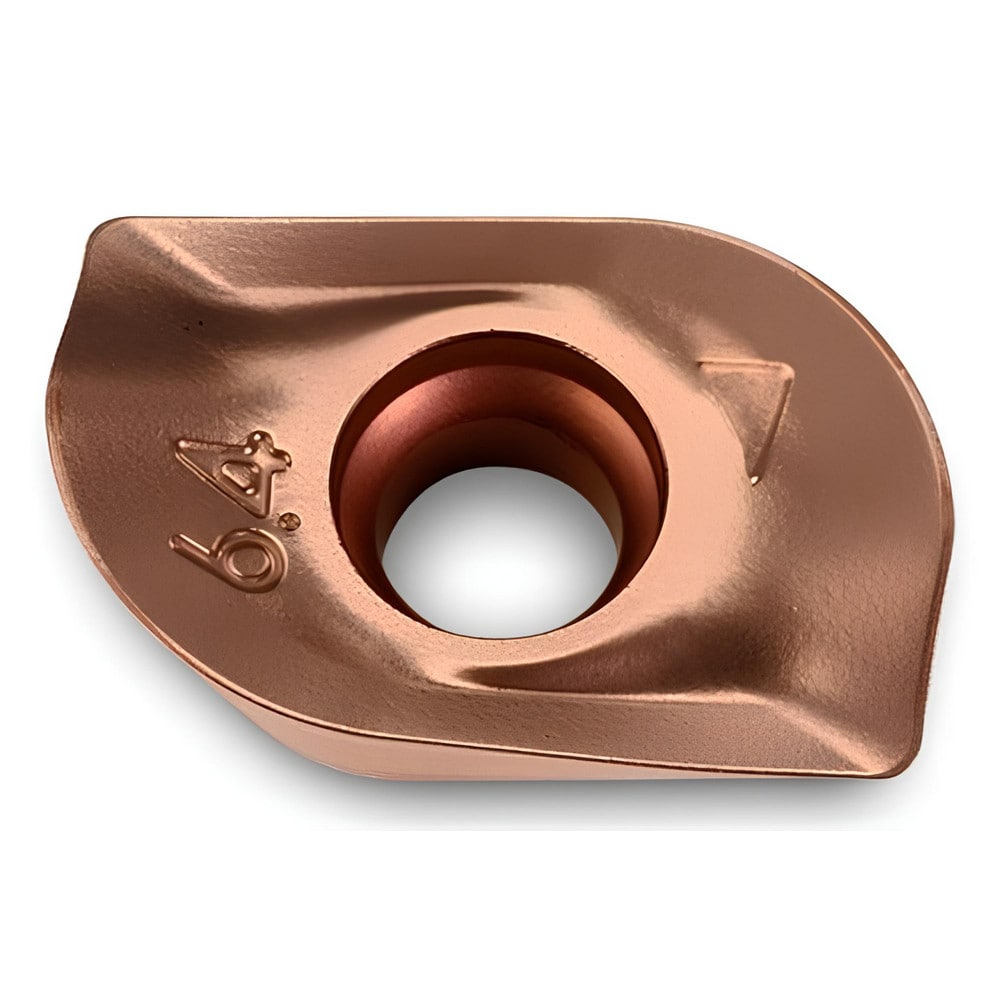

Brand: Ingersoll Cutting Tools / Part #: 6341730

Brand: Ingersoll Cutting Tools / Part #: 6341730


Item #: 12019642
Brand: Ingersoll Cutting Tools
Model #: 6341730

Product Specifications

Insert Style AOMT
Insert Size Code 170564
Insert Material Carbide
Manufacturer Grade IN2530
Thickness (Inch) 7/32
Inscribed Circle (Inch) 27/64
Corner Radius (Inch) 1/4
Insert Hand Right Hand
Series AOMT
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.5950
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M
Ansi Code AOMT170564R-HS
Manufacturers Catalog Number AOMT170564R-HS IN2530
Cutter Series Compatibility 22J5G; 12J1G; 22J3G; 2L1G; 12N1G; 2J1G; 12L1G
Chip Breaker HS
Cutting Direction Right Hand
Shape Parallelogram
Length of Cut (mm) 15.1100
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish TiN; TiAlN
Included Angle Degree 85
Width (Decimal Inch - 4 Decimals) 0.4210
Multi-Use Tool No
Length (Decimal Inch - 4 Decimals) 0.6690
$20.15
