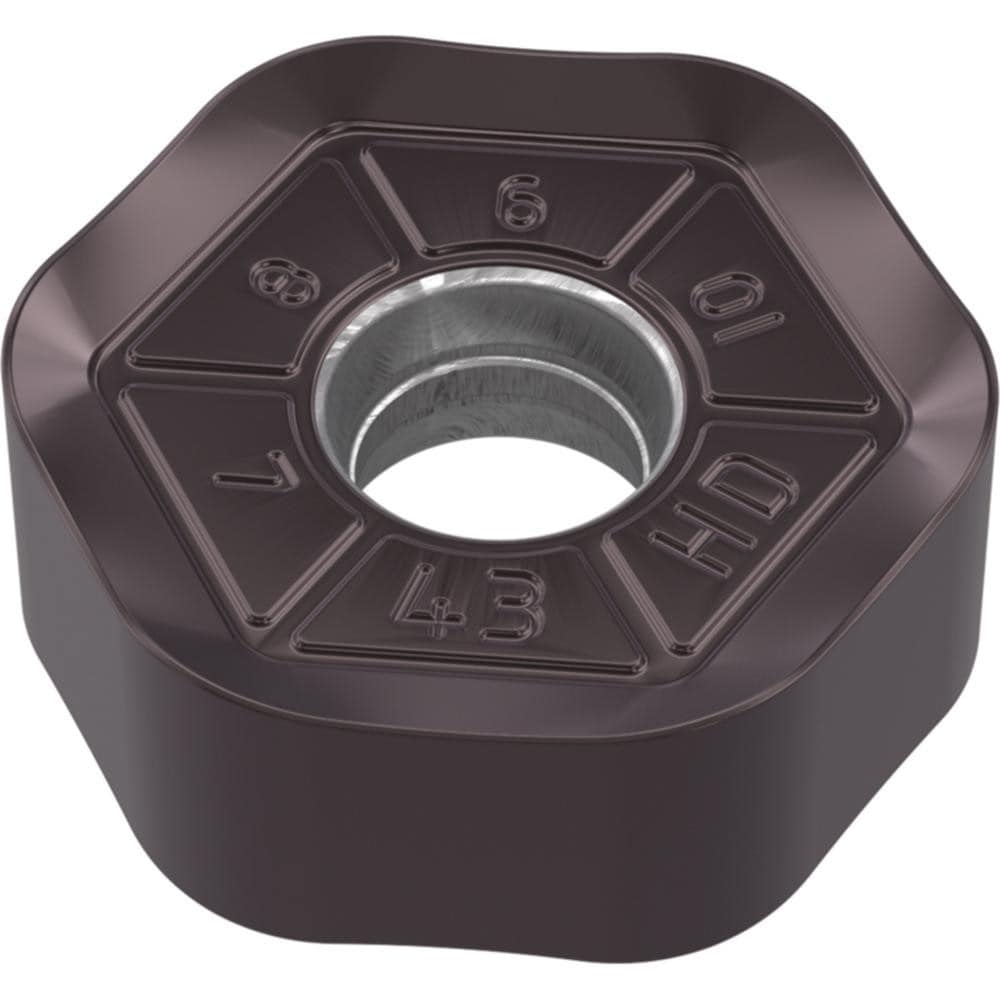

Brand: Widia / Part #: 3670864

Brand: Widia / Part #: 3670864


Item #: 94033792
Brand: Widia
Model #: 3670864

Product Specifications

Insert Style HNPJ
Insert Size Code 0905
Insert Size 53
Insert Material Carbide
Width (Inch) 5/8
Manufacturer Grade TN6520
Length (Inch) 5/8
Inscribed Circle (Inch) 5/8
Inscribed Circle (Decimal Inch) 0.6250
Corner Radius (Decimal Inch) 0.0469
Corner Radius (Inch) 3/64
Insert Hand Neutral
Relief Angle 0.000
Series M1200
Coating Process PVD
Hole Diameter (Mm) ( - 0 Decimals) 5.0000
Hole Diameter (Decimal Inch) 0.1969
Maximum Depth of Cut (Decimal Inch) 0.3383
Number Of Cutting Edges 12
Insert Shape Hexagon
Rake Negative
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code HNPJ535ANSNHD
Iso Code HNPJ0905ANSNHD
Manufacturers Catalog Number HNPJ535ANSNHD
Cutter Series Compatibility M1200 HN0905 IN
Chip Breaker HD
Cutting Direction Neutral
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Hexagon
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiAlN
Included Angle Degree 120
Width (Decimal Inch - 4 Decimals) 0.6250
Thickness (Decimal Inch - 4 Decimals) 0.2151
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.6250
$20.02
