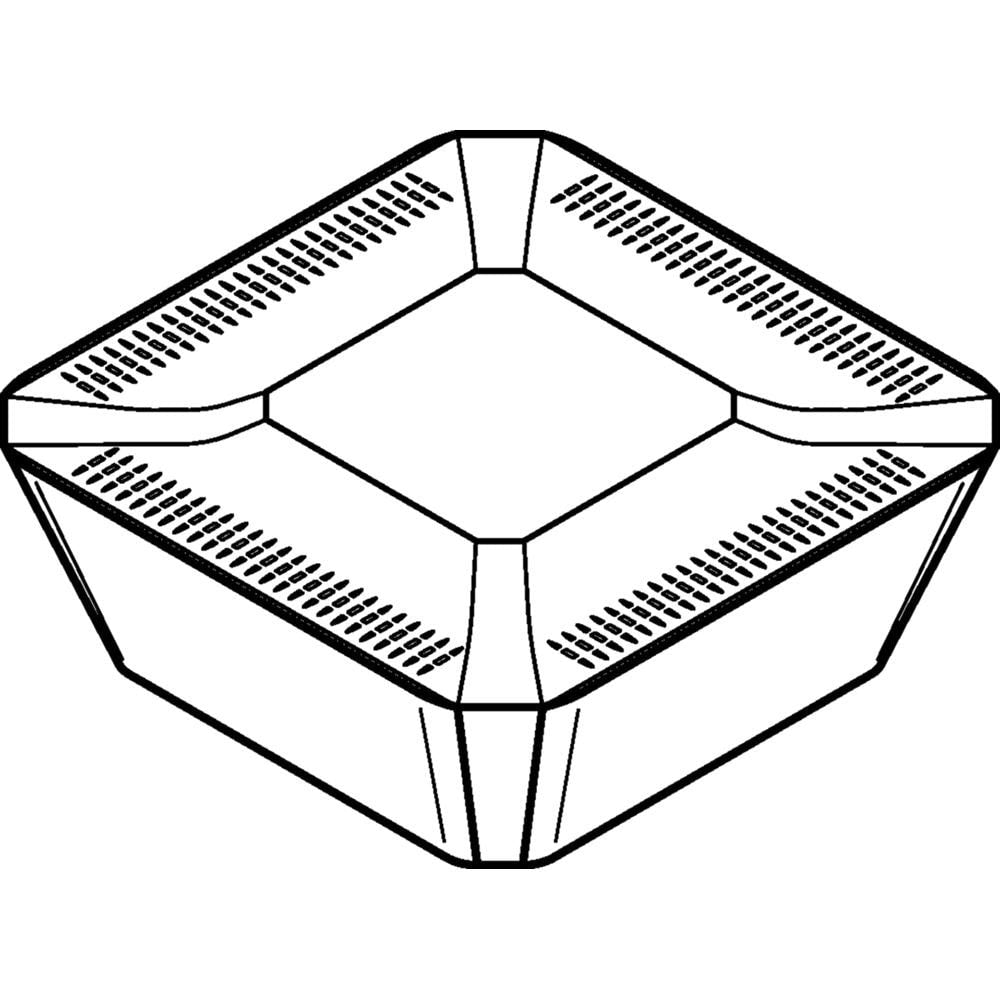

![Brand: Widia / Part #: 2415793](http://exactindustrialsupply.com/cdn/shop/files/9400709-21_ef5164fa-bce0-4c0f-b8da-2349f22e09cd_1024x1024.jpg?v=1698430585)
Brand: Widia / Part #: 2415793
Item #: 94041134
Brand: Widia
Model #: 2415793
Product Specifications
Insert Style | SEKR |
Insert Size Code | 1203 |
Insert Size | 12 |
Insert Material | Carbide |
Width (Inch) | 1/2 |
Manufacturer Grade | WU20PM |
Length (Inch) | 1/2 |
Inscribed Circle (Inch) | 1/2 |
Inscribed Circle (Decimal Inch) | 0.5000 |
Corner Radius (Decimal Inch) | 0.0000 |
Insert Hand | Neutral |
Relief Angle | 20.000 |
Series | SEKR |
Coating Process | PVD |
Hole Diameter (Decimal Inch) | 0.0000 |
Maximum Depth of Cut (Decimal Inch) | 0.5000 |
Number Of Cutting Edges | 4 |
Insert Shape | Square |
Rake | Positive |
Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
Secondary Workpiece Material Code | P; S; H; K; M; N |
Ansi Code | SEKR1203AFNMS |
Iso Code | SEKR1203AFNMS |
Manufacturers Catalog Number | SEKR1203AFNMS |
Cutter Series Compatibility | M68 SE1203 IN |
Chip Breaker | MS |
Cutting Direction | Neutral |
Material Application | High-Temperature Alloy; Stainless Steel; Steel |
Shape | Square |
Insert Holding Method | Clamp |
Coating Classification | PVD |
Single or Double Sided Insert | Single |
Coating/Finish | TiAlN |
Included Angle Degree | 90 |
Width (Decimal Inch - 4 Decimals) | 0.5000 |
Thickness (Decimal Inch - 4 Decimals) | 0.1220 |
Multi-Use Tool | Yes |
Length (Decimal Inch - 4 Decimals) | 0.5000 |
