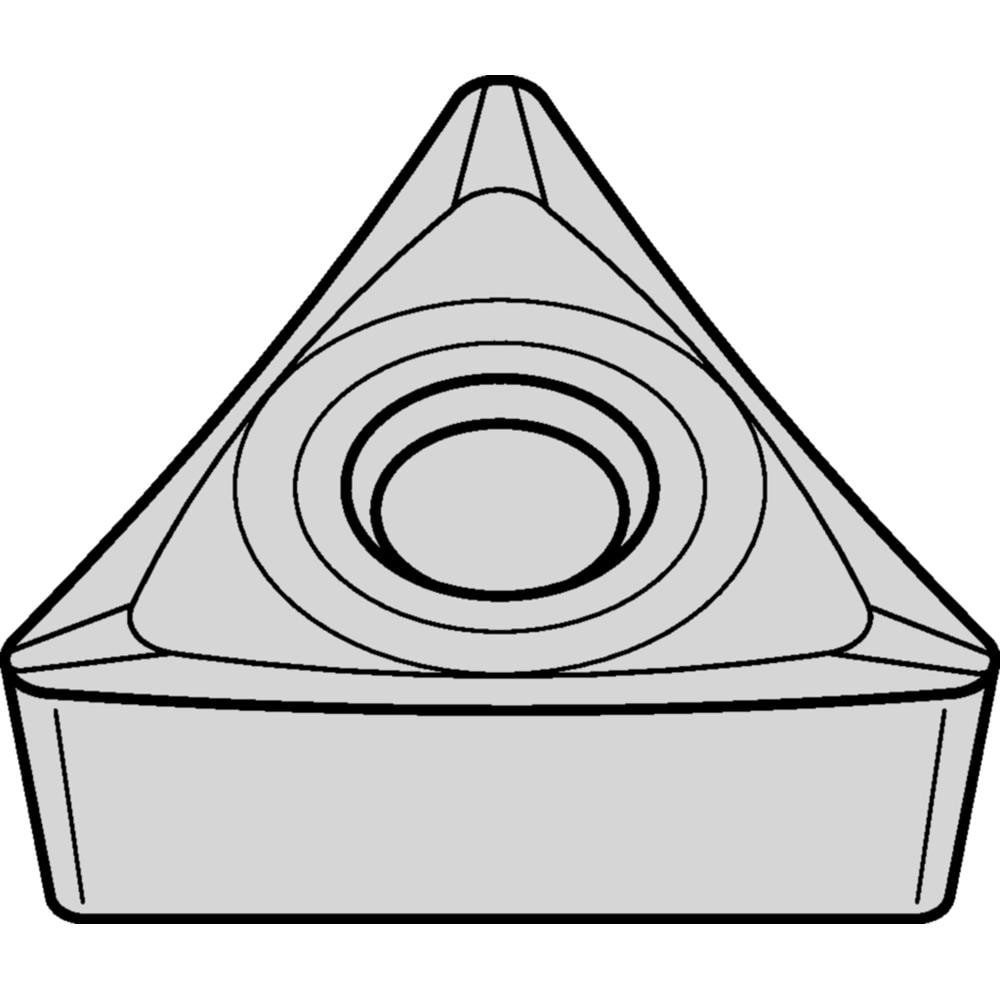

Brand: Widia / Part #: 2821536
Item #: 93342020
Brand: Widia
Model #: 2821536
Product Specifications
| Insert Style | TPGT |
| Insert Shape Code | T |
| Insert Size Code | 3251 |
| Insert Shape | Triangle |
| Coating/Finish | TiN |
| Manufacturer Grade | CG5 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3248 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Clearance Code | P |
| Tolerance Code | G |
| Included Angle | 60.00 |
| Relief Angle | 11.000 |
| Series | TPGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6495 |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | TPGT3251HP |
| Iso Code | TPGT16T304HP |
| Manufacturers Catalog Number | TPGT3251HP |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | HP |
| Style | TPGT |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning; Boring |
