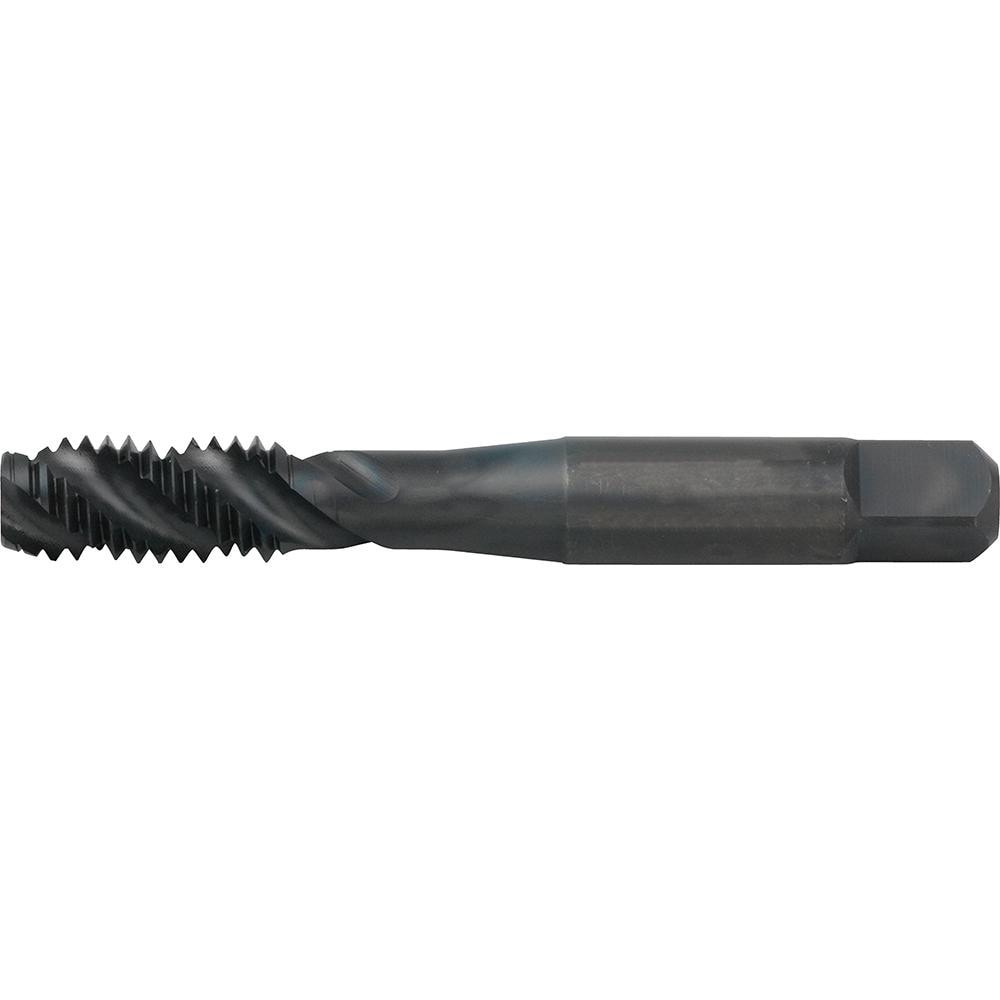

![Brand: Widia / Part #: 5357393](http://exactindustrialsupply.com/cdn/shop/files/9719246-21_f8501ace-a7bd-4376-b656-ca5a9adefea0_1024x1024.jpg?v=1698313069)
Brand: Widia / Part #: 5357393
Item #: 97415954
Brand: Widia
Model #: 5357393
Product Specifications
Thread Size (Inch) | #10-24 |
Chamfer | Modified Bottoming |
Thread Limit | H11 |
Number Of Flutes | 3 |
Material | High Speed Steel |
Threads per Inch | 24 |
Thread Direction | Right Hand |
Flute Direction | Right Hand |
Coating/Finish | TiCN |
Coolant Through | No |
Thread Length (Decimal Inch) | 0.5000 |
Overall Length (Decimal Inch) | 2.3800 |
Thread Depth (Decimal Inch) | 0.9200 |
Thread Pitch (Decimal Inch) | 0.0417 |
Thread Standard | UNC |
Material Grade | WP42EG |
Shank Diameter (Decimal Inch) | 0.1940 |
Square Size (Decimal Inch) | 0.1500 |
Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
Series | VTSFT |
