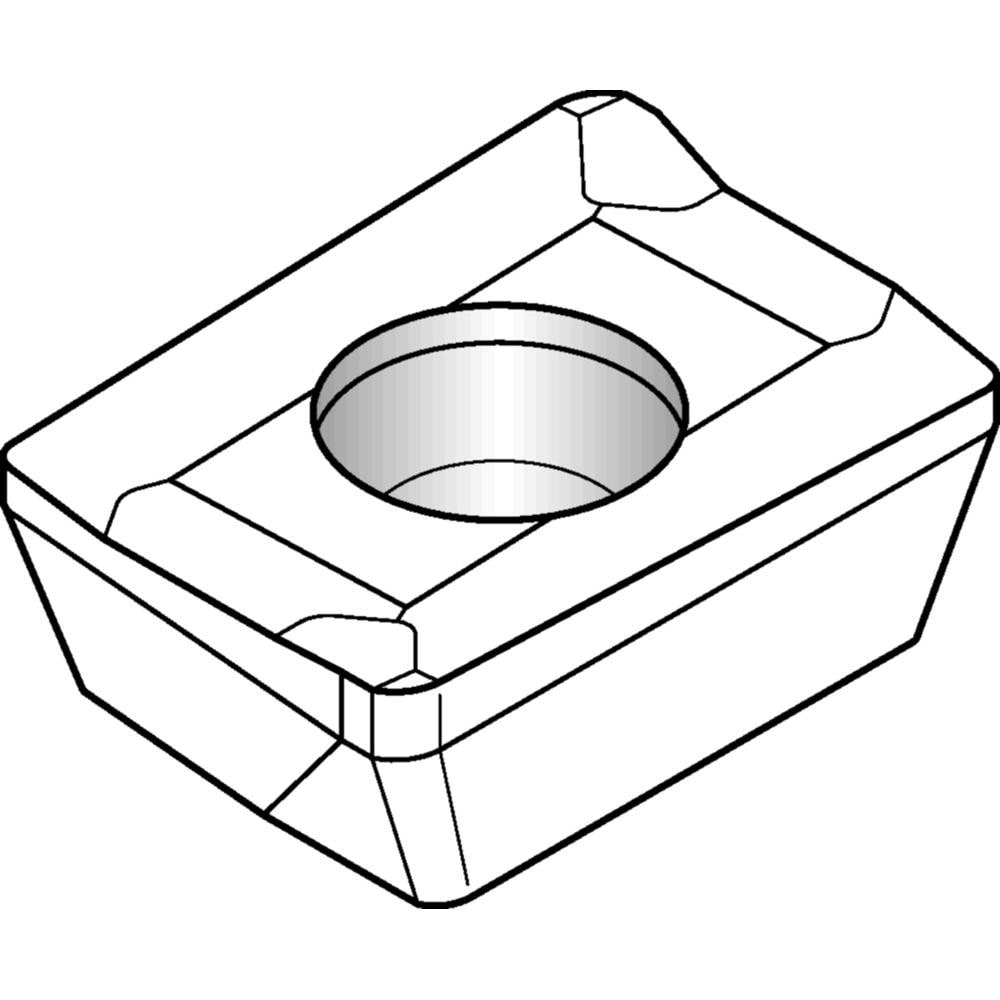

Brand: Widia / Part #: 3859302
Item #: 95104907
Brand: Widia
Model #: 3859302
Product Specifications
| Insert Style | BDGT |
| Insert Size Code | 1704 |
| Insert Size | 17 |
| Insert Material | Carbide |
| Manufacturer Grade | THR-S |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Relief Angle | 13.000 |
| Series | M6800 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1736 |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; N |
| Ansi Code | BDGT170404FRAL |
| Iso Code | BDGT170404FRAL |
| Manufacturers Catalog Number | BDGT170404FRAL |
| Cutter Series Compatibility | M6800LX BD1704 IN |
| Chip Breaker | AL |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Length of Cut (mm) | 17.0000 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2007 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7366 |
