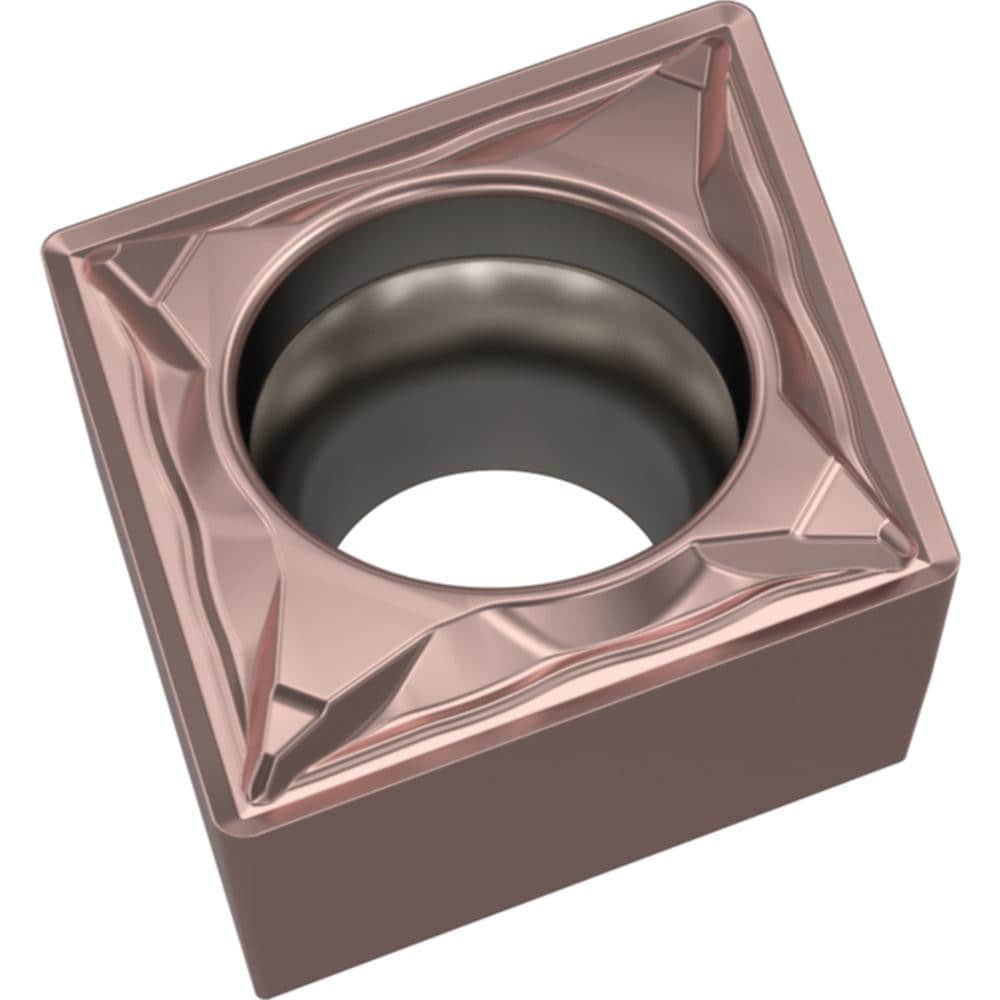

Brand: Widia / Part #: 4169857

Brand: Widia / Part #: 4169857


Item #: 95893483
Brand: Widia
Model #: 4169857

Product Specifications

Insert Style CCMT
Insert Shape Code C
Insert Size Code 21505
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP15CT
Corner Radius (Decimal Inch) 0.0079
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1270
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 80.00
Relief Angle 7.000
Series CCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.2539
Number Of Cutting Edges 2
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code CCMT21505FP
Iso Code CCMT060202FP
Manufacturers Catalog Number CCMT21505FP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker FP
Cutting Edge Style Sharp
Style CCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.23
