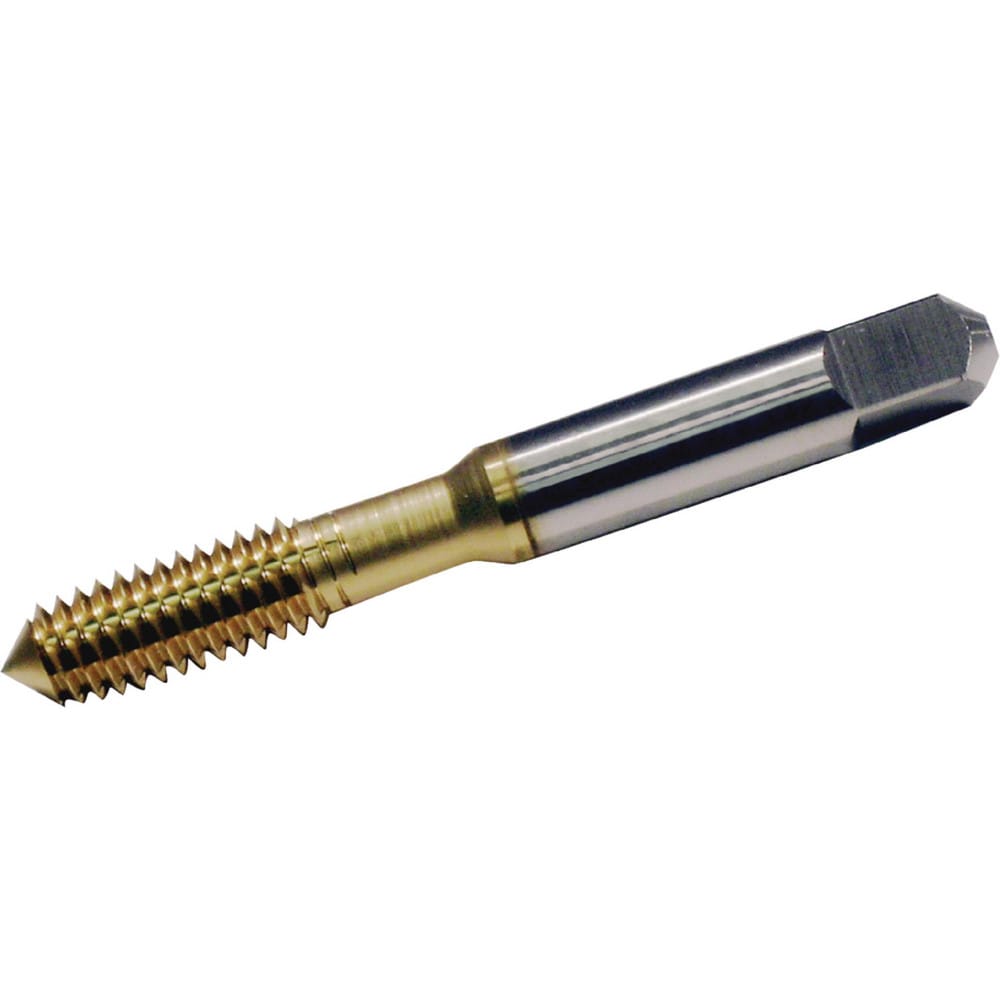

Brand: Widia / Part #: 2747289

Brand: Widia / Part #: 2747289


Item #: 98991987
Brand: Widia
Model #: 2747289

Product Specifications

Thread Size (Inch) 1/4-28
Overall Length (Decimal Inch) 2.5000
Chamfer Bottoming
Coating/Finish TiN
Thread Limit H4
Thread Pitch (Decimal Inch) 0.0357
Thread Standard UNF
Thread Direction Right Hand
Material High Speed Steel
Thread Length (Decimal Inch) 0.6250
Thread Depth 1.0000
Thread Depth (Decimal Inch) 1.0000
Shank Diameter (Decimal Inch) 0.2550
Neck Length (Decimal Inch) 0.3750
Square Length (Decimal Inch) 0.3125
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Application Metal
Series 5902
Tap Type Blind
Tapping Depth (Decimal Inch) 1.0000
Shank Length (Decimal Inch) 1.5000
Square Size (Decimal Inch) 0.1910
Threads per Inch 28
Class Of Fit 3B
Coolant Through No
$19.68
