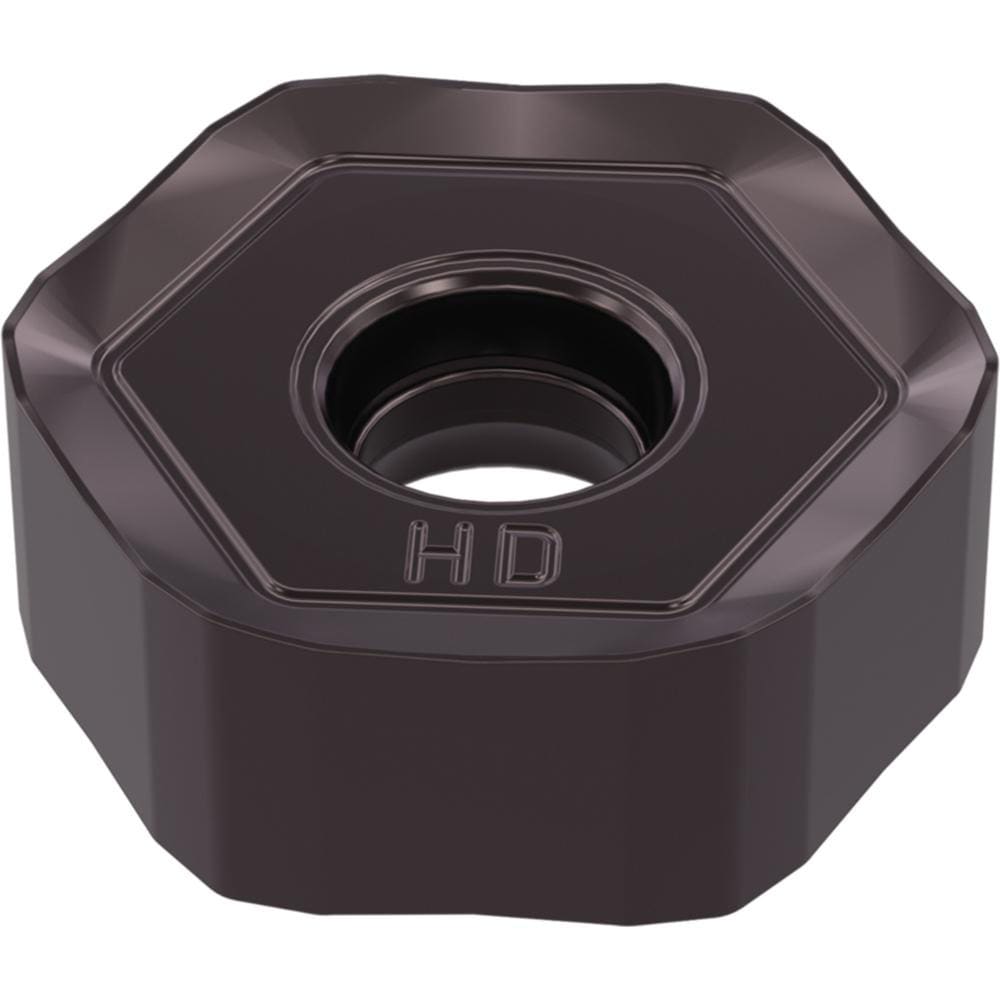

Brand: Widia / Part #: 3563900
Item #: 94097649
Brand: Widia
Model #: 3563900
Product Specifications
| Insert Style | HNGJ |
| Insert Size Code | 0905 |
| Insert Size | 53 |
| Insert Material | Carbide |
| Width (Inch) | 5/8 |
| Manufacturer Grade | TN6520 |
| Length (Inch) | 5/8 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1200 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.0000 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (Decimal Inch) | 0.3383 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | HNGJ535ANSNHD |
| Iso Code | HNGJ0905ANSNHD |
| Manufacturers Catalog Number | HNGJ535ANSNHD |
| Cutter Series Compatibility | M1200 HN0905 IN |
| Chip Breaker | HD |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiAlN |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2151 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
