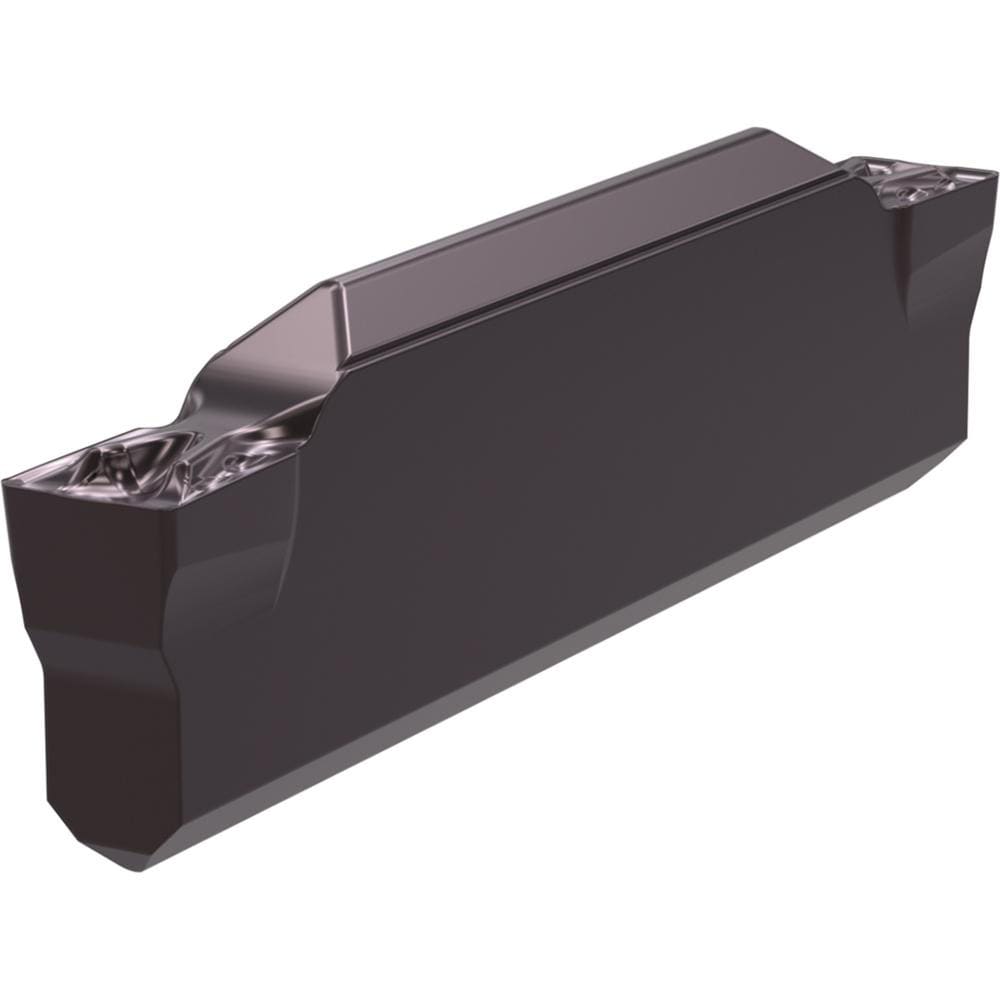

Brand: Widia / Part #: 4169554

Brand: Widia / Part #: 4169554


Item #: 94508744
Brand: Widia
Model #: 4169554

Product Specifications

Insert Style WMT
Insert Size Code 2
Insert Size 2
Insert Material Carbide
Manufacturer Grade WP10CT
Cutting Width (Decimal Inch) 0.0839
Maximum Depth of Cut (Decimal Inch) 1.0050
Insert Holding Method Clamp
Insert Hand Neutral
Corner Radius (Decimal Inch) 0.0059
Corner Radius (Inch) 3/512
Lead Angle 5.000
Rake Positive
Multi-use Tool No
Cutting Tool Application Grooving
Series WMT
Coating Process CVD
Overall Length (Decimal Inch) 0.7570
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code WMTS205M2U02PT
Iso Code WMTS205M2U02PT
Relief Angle 5
Maximum Corner Radius (Decimal Inch) 0.0059
Manufacturers Catalog Number WMTS205M2U02PT
Insert Thickness (Decimal Inch) 0.1670
Minimum Groove Width (mm) 2.13
Type WMT Groove Cutoff Turn Insert
Maximum Groove Width (mm) 2.13
Minimum Insert Width (mm) 1.68
Chip Breaker PT
Insert Seat Size 2
Style WMT Groove Cutoff Turn Insert
Insert Height (Decimal Inch) 0.1670
Full Radius No
Gage Diameter (Decimal Inch) 0.0625
Coating Classification CVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 1/16
Overall Width (Decimal Inch - 4 Decimals) 0.0660
Coating/Finish TiCN; Al2O3
Number Of Cutting Edges 2
Single Or Double End Double
Groove Width (mm) 2.13
For Use With Grooving
$27.23
