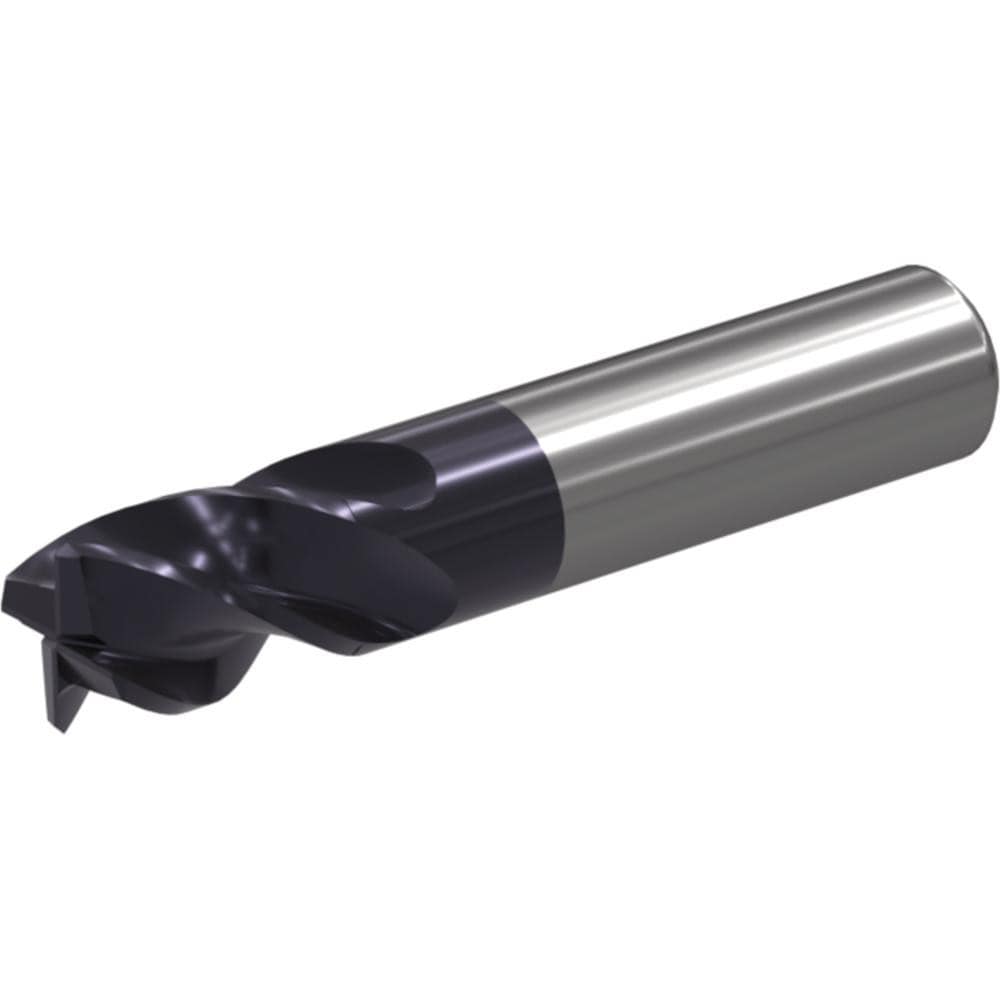

Brand: Widia / Part #: 6945588

Brand: Widia / Part #: 6945588


Item #: 33981085
Brand: Widia
Model #: 6945588

Product Specifications

Mill Diameter (Inch) 3/8
Chamfer Width (Decimal Inch) 0.0200
Coating/Finish TiAlN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (Inch) 2
Overall Length (mm) 2.00
Length of Cut (Inch) 1/2
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 0.3750
Flute Direction Right Hand
Overall Length (Decimal Inch) 2.0000
Chipbreaker No
End Type Single
Chamfer Angle 45
Length Of Cut (Decimal Inch - 4 Decimals) 0.5000
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 0.3750
Shank Diameter (Inch) 3/8
Minimum Helix Angle 37.00
Maximum Helix Angle 37.00
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; H; K; M
Secondary Workpiece Material Super Alloys & Titanium
Secondary Workpiece Material Code S
Material Grade WU20PE
Series W401
