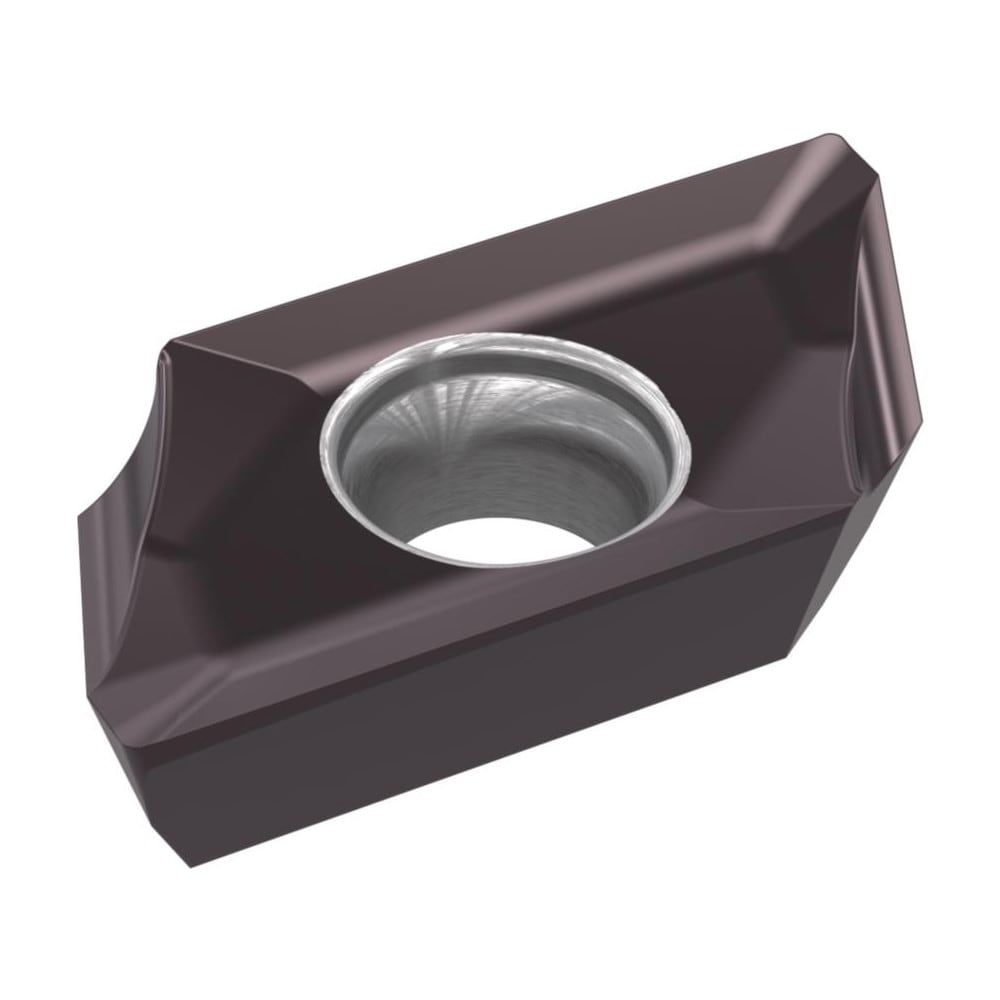

Brand: Widia / Part #: 6425774
Item #: 48173058
Brand: Widia
Model #: 6425774
Product Specifications
| Insert Style | XDET |
| Insert Size Code | 16M5 |
| Insert Size | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | WN10HM |
| Length (Inch) | 29/32 |
| Inscribed Circle (Decimal Inch) | 0.4430 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 15.250 |
| Series | VHSC |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (Decimal Inch) | 0.6460 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | XDET16M508FRALP |
| Iso Code | XDET16M508FRALP |
| Manufacturers Catalog Number | XDET16M508FRALP |
| Cutter Series Compatibility | VHSC XD16 |
| Chip Breaker | ALP |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.0000 |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4430 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.9060 |
