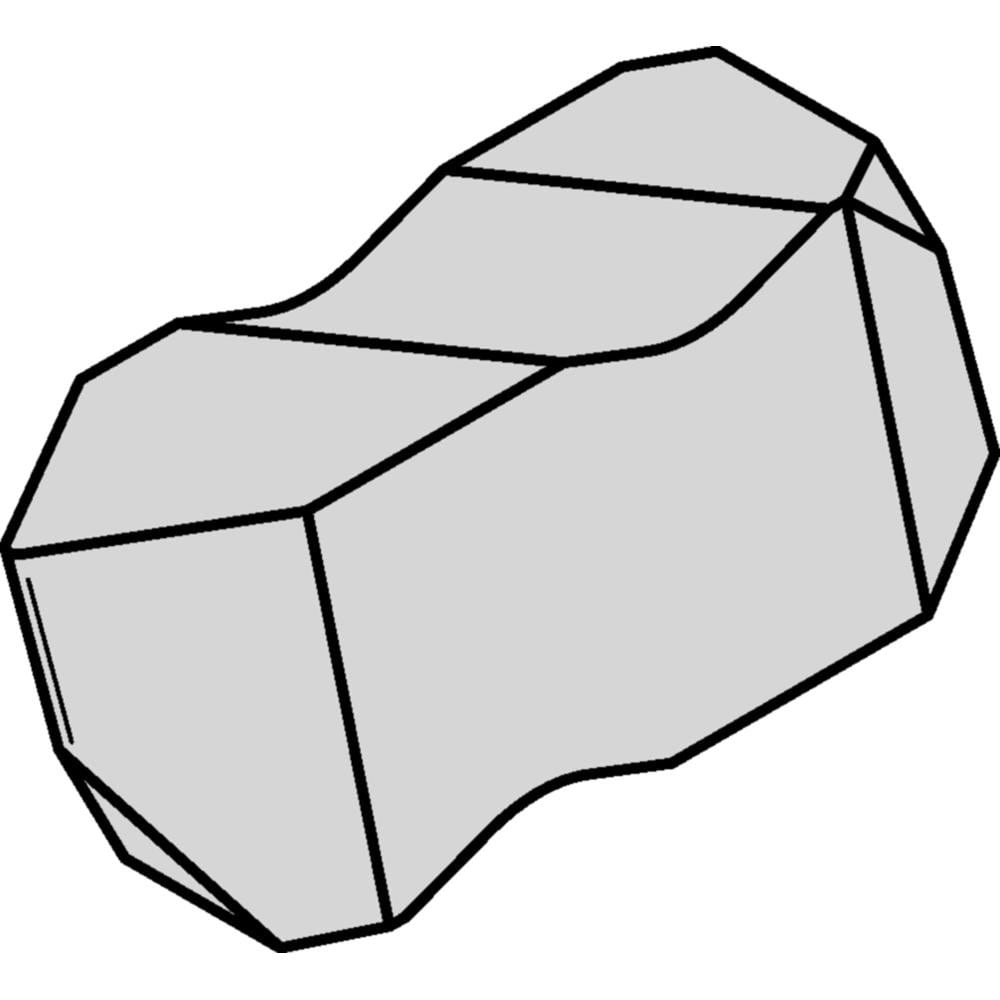

Brand: Widia / Part #: 3607843
Item #: 19672625
Brand: Widia
Model #: 3607843
Product Specifications
| Insert Style | NT |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Thread Type | Internal & External |
| Material Grade | TN6025 |
| Thread Standard | 60 Degree V |
| Insert Hand | Right Hand |
| Internal Pitch | 1.25-3.5 |
| External Pitch | 0.70-3.0 |
| Included Angle | 60.00 |
| Chipbreaker | FLAT |
| Series | NT |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Ansi Code | NT2R |
| Iso Code | NT2R |
| Maximum Corner Radius (Decimal Inch) | 0.0040 |
| Maximum Depth of Cut (Decimal Inch) | 0.1299 |
| Coating Classification | PVD |
| Shape | Irregular |
| Insert Holding Method | Clamp |
| Insert Size | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Finish Coating | AlTiN |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
