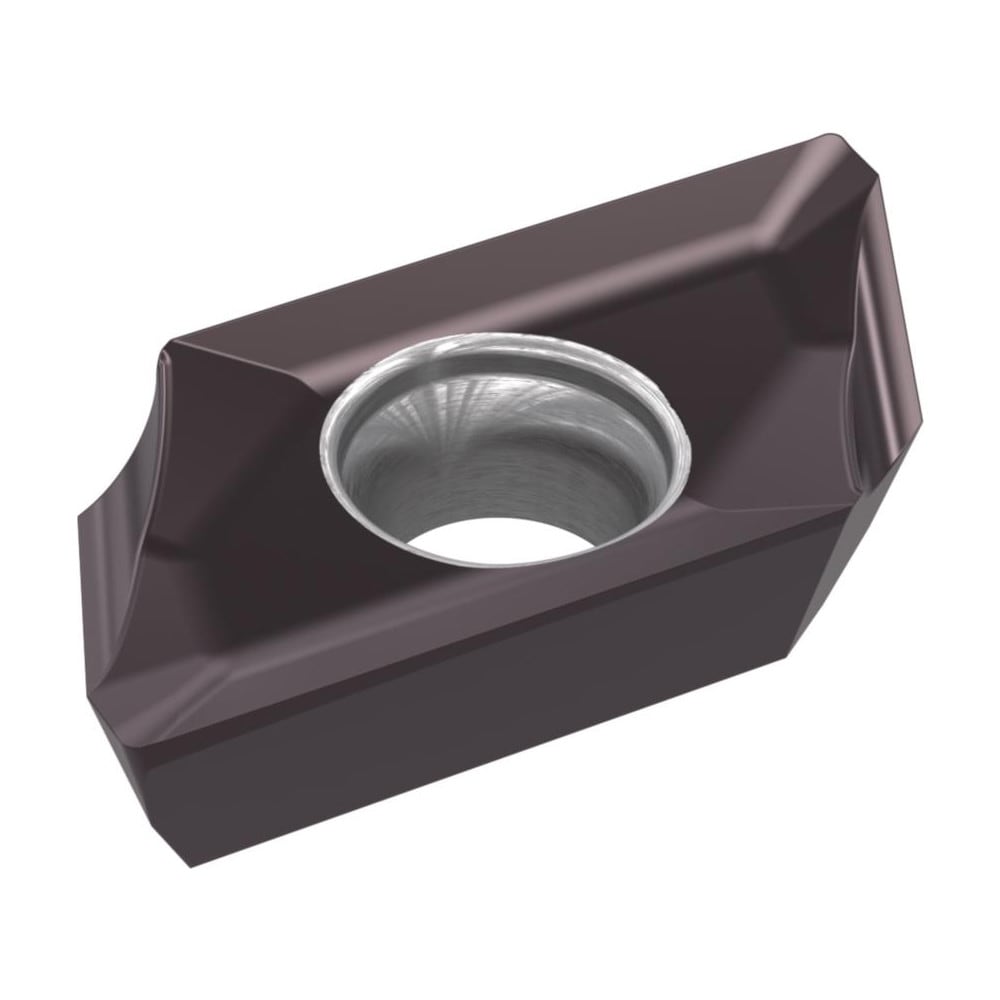

Brand: Widia / Part #: 6425775

Brand: Widia / Part #: 6425775


Item #: 94601960
Brand: Widia
Model #: 6425775

Product Specifications

Insert Style XDET
Insert Size Code 16M5
Insert Size 16
Insert Material Carbide
Manufacturer Grade WN10HM
Length (Inch) 29/32
Inscribed Circle (Decimal Inch) 0.4430
Corner Radius (Decimal Inch) 0.0830
Insert Hand Right Hand
Relief Angle 15.250
Series VHSC
Coating Process Uncoated
Hole Diameter (Decimal Inch) 0.2170
Maximum Depth of Cut (Decimal Inch) 0.6460
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code XDET16M520FRALP
Iso Code XDET16M520FRALP
Manufacturers Catalog Number XDET16M520FRALP
Cutter Series Compatibility VHSC XD16
Chip Breaker ALP
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Insert Holding Method Screw
Thickness (mm) 5.0000
Coating Classification Uncoated
Single or Double Sided Insert Single
Coating/Finish Uncoated
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.4430
Thickness (Decimal Inch - 4 Decimals) 0.1968
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.9060
$25.80
