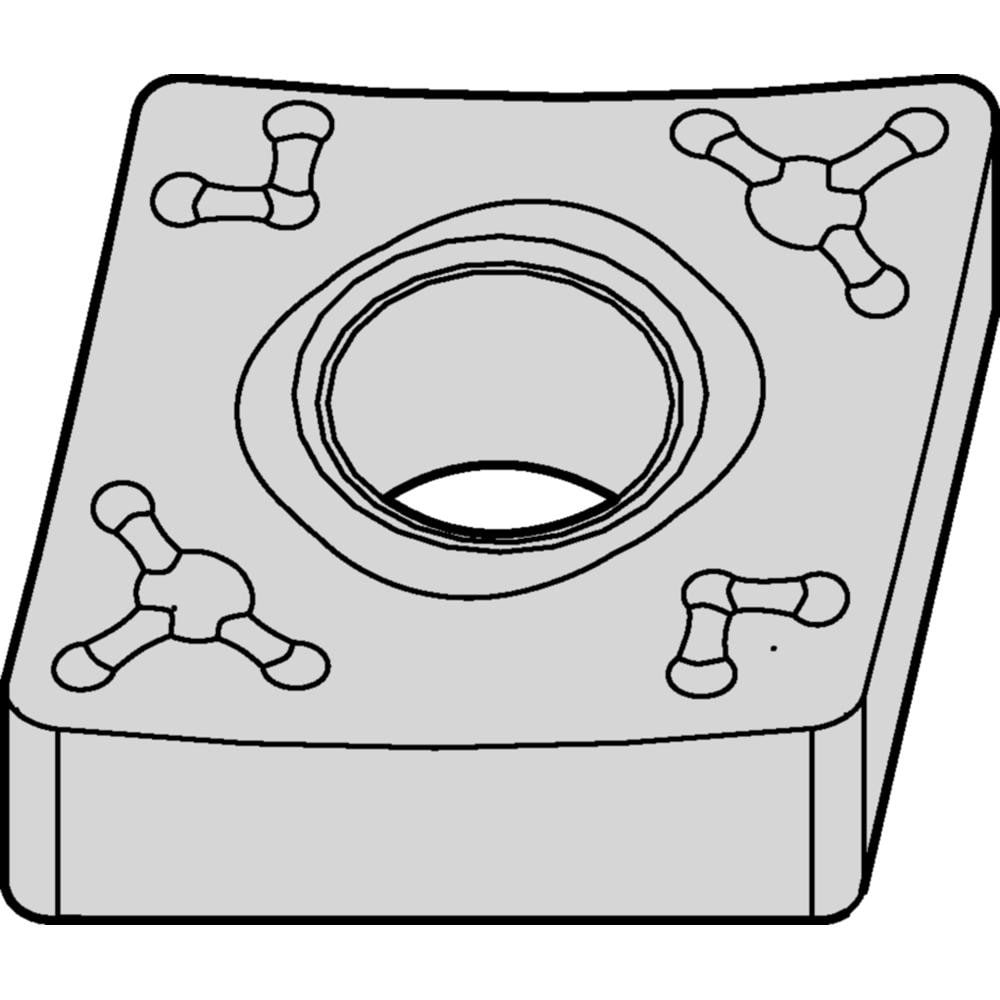

Brand: Widia / Part #: 5698370

Brand: Widia / Part #: 5698370


Item #: 93327955
Brand: Widia
Model #: 5698370

Product Specifications

Insert Style CNMM
Insert Shape Code C
Insert Size Code 543
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2500
Maximum Depth of Cut (Decimal Inch) 0.3173
Inscribed Circle (Decimal Inch) 0.6250
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6346
Number Of Cutting Edges 4
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code CNMM54365
Iso Code CNMM16061265
Manufacturers Catalog Number CNMM54365
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 65
Style CNMM
Width (Decimal Inch - 4 Decimals) 0.6250
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
