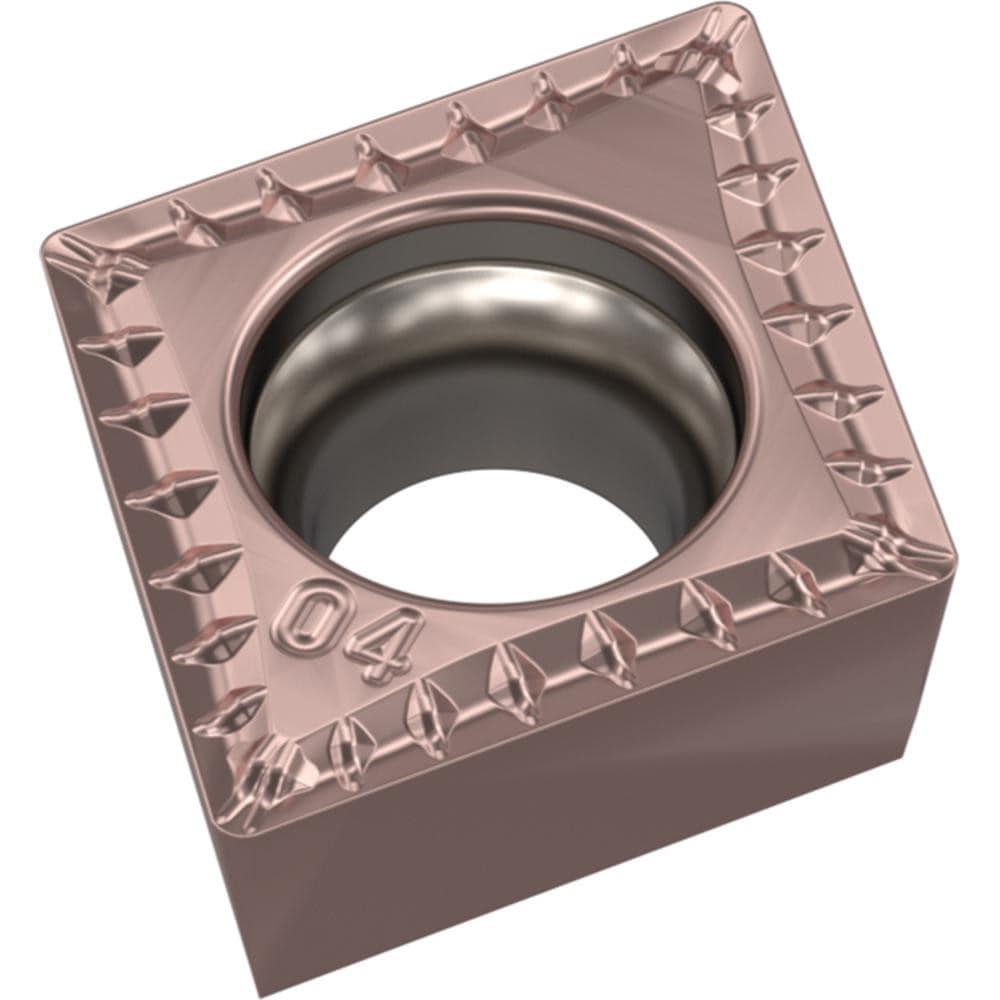

Brand: Widia / Part #: 5623158

Brand: Widia / Part #: 5623158


Item #: 93289460
Brand: Widia
Model #: 5623158

Product Specifications

Insert Style CCMT
Insert Shape Code C
Insert Size Code 2152
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade WK20CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1270
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 80.00
Relief Angle 7.000
Series CCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.2539
Number Of Cutting Edges 4
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code CCMT2152MU
Iso Code CCMT060208MU
Manufacturers Catalog Number CCMT2152MU
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker MU
Style CCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.47
