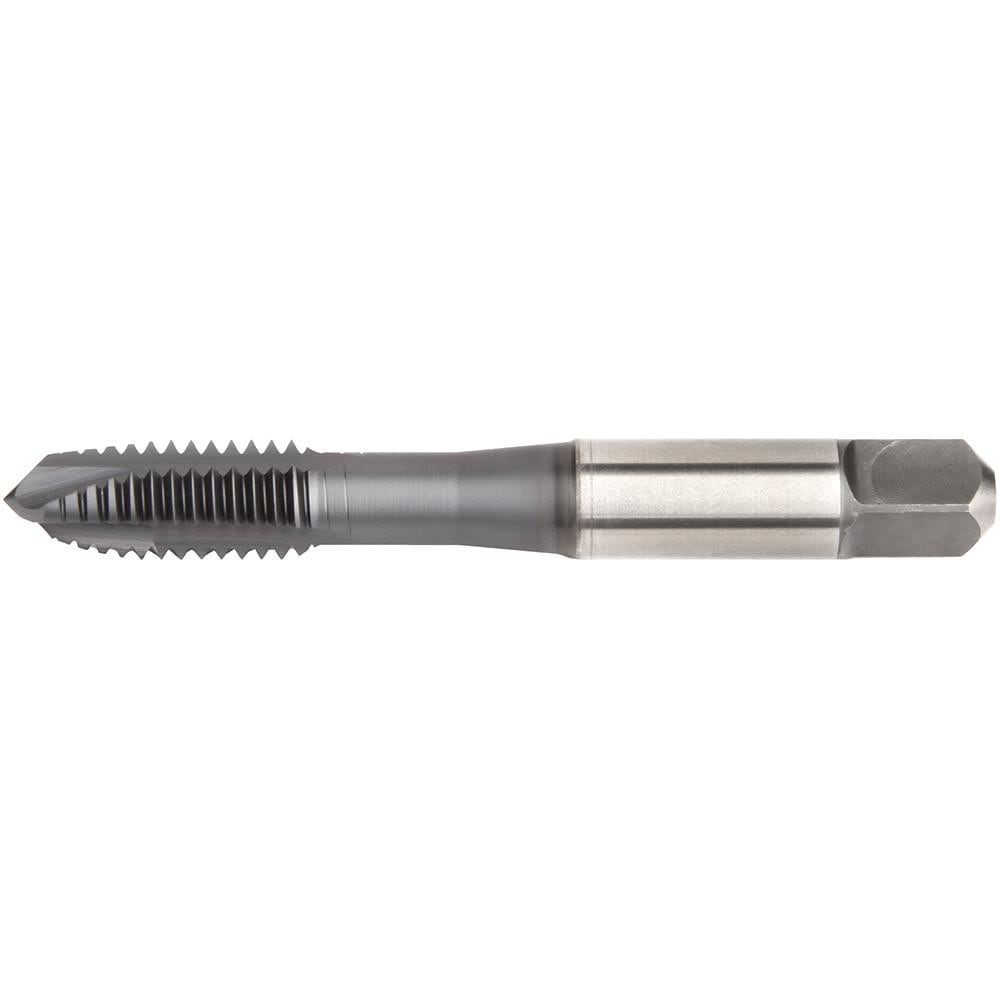

Brand: Widia / Part #: 5357293

Brand: Widia / Part #: 5357293


Item #: 93096162
Brand: Widia
Model #: 5357293

Product Specifications

Thread Size (Inch) #6-32
Number Of Flutes 2
Chamfer Plug
Thread Limit H5
Class Of Fit H5
Coating/Finish TiCN
Threads per Inch 32
Material High Speed Steel
Coolant Through No
Thread Direction Right Hand
Thread Depth (Decimal Inch) 0.7100
Thread Pitch (Decimal Inch) 0.0313
Thread Standard UNC
Material Grade WP42EG
Thread Length (Decimal Inch) 0.3800
Overall Length (Decimal Inch) 1.9900
Shank Diameter (Decimal Inch) 0.1410
Square Size (Decimal Inch) 0.1080
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series VT-SPO
