Brand: Widia / Part #: 4168918

Brand: Widia / Part #: 4168918


Item #: 95963161
Brand: Widia
Model #: 4168918

Product Specifications

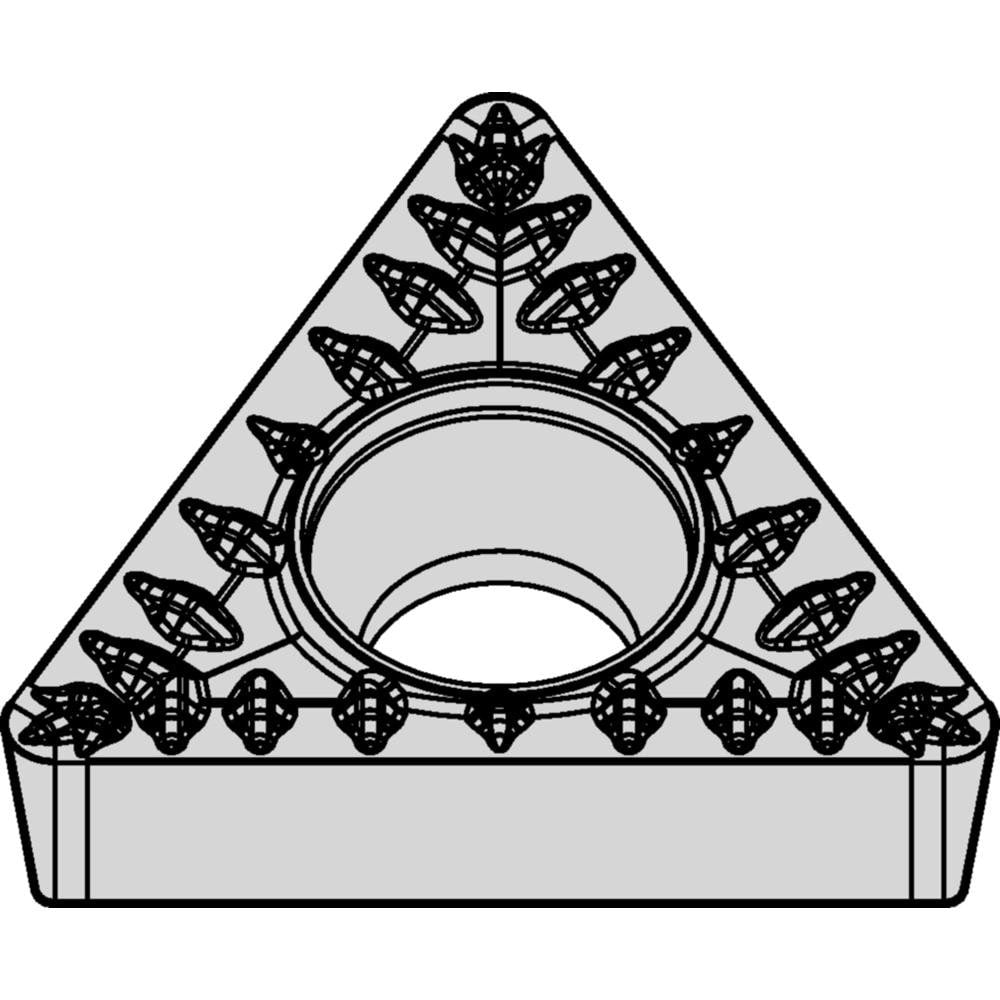

Insert Style TCMT
Insert Shape Code T
Insert Size Code 3251
Insert Shape Triangle
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 60.00
Relief Angle 7.000
Series TCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.6495
Number Of Cutting Edges 3
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code TCMT3251MP
Iso Code TCMT16T304MP
Manufacturers Catalog Number TCMT3251MP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker MP
Style TCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
