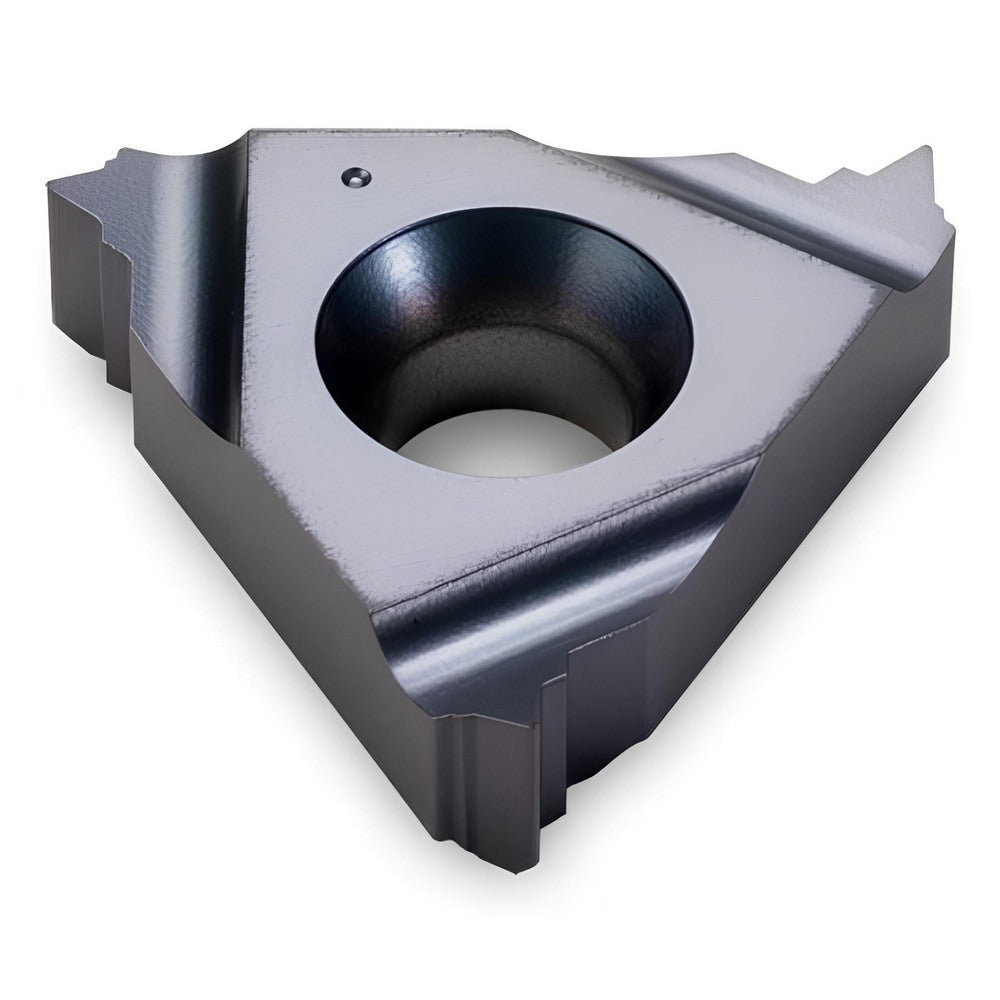

Brand: Ingersoll Cutting Tools / Part #: 5995792

Brand: Ingersoll Cutting Tools / Part #: 5995792


Item #: 06686042
Brand: Ingersoll Cutting Tools
Model #: 5995792

Product Specifications

Insert Style 22IR
Insert Size Code 22
Insert Material Carbide
Manufacturer Grade TT7010
Thread Type Internal
Pitch (mm) 4.50
Thread Standard Metric 60 Degree
Insert Hand Right Hand
Included Angle 60.00
Chipbreaker None
Series ISO Metric Regular Type
Coating Process PVD
Inscribed Circle (Inch) 1/2
Corner Radius (Decimal Inch) 0.0110
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Secondary Workpiece Material Hard Material; Non-Ferrous Metal; Super-alloys & Titanium
Secondary Workpiece Material Code S; H; N
Ansi Code 22IR4.50ISO
Iso Code 22IR4.50ISO
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.094
Face of Insert to Tip Centerline (Decimal Inch) 0.063
Number of Teeth Per Side 1
Cutting Direction Right Hand
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1880
Coating/Finish TiCN; TiN
$28.22
