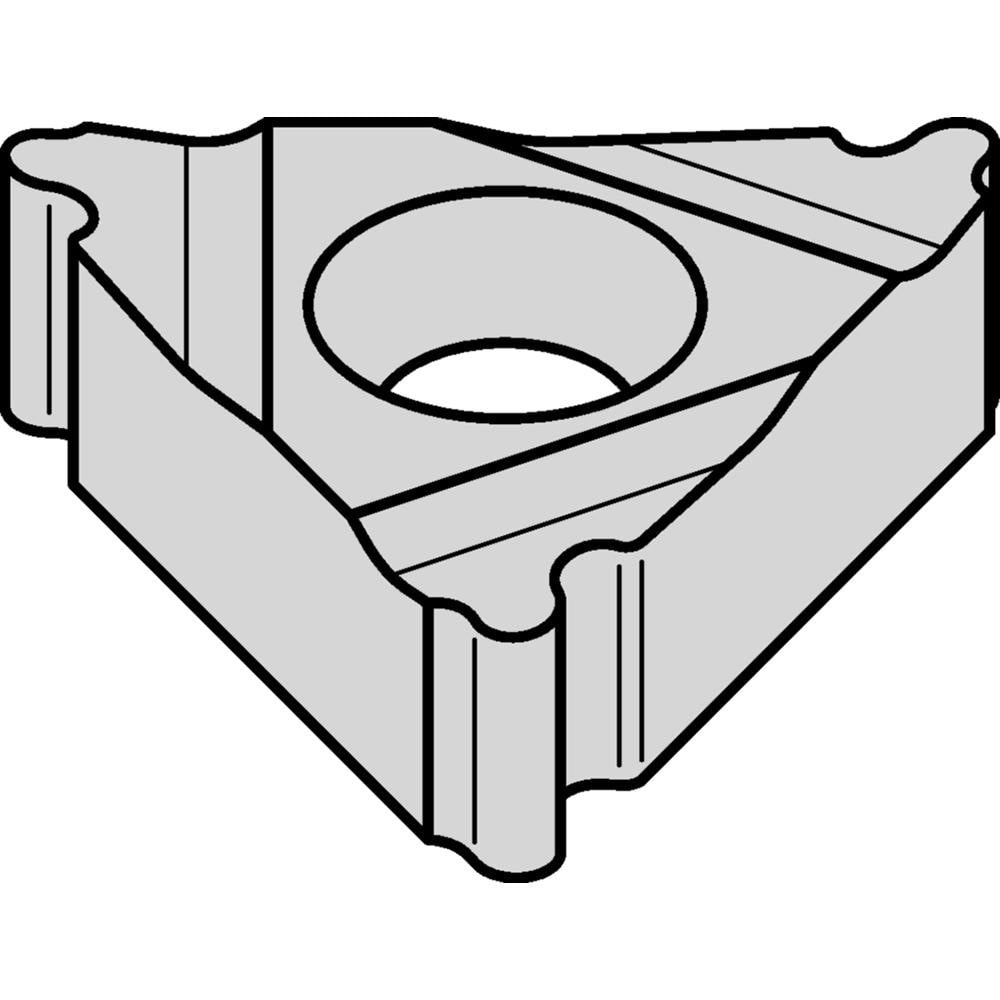

Brand: Widia / Part #: 2019381
Item #: 99583221
Brand: Widia
Model #: 2019381
Product Specifications
Insert Style | IR |
Insert Size Code | 3 |
Insert Material | Carbide |
Manufacturer Grade | TN6025 |
Material Grade | TiAlN |
Threads Per Inch | 8 |
Thread Type | Internal |
Thread Standard | ISO |
Insert Hand | Right Hand |
Included Angle | 60.00 |
Chipbreaker | None |
Series | 3IR |
Coating Process | PVD |
Inscribed Circle (Inch) | 3/8 |
Corner Radius (Decimal Inch) | 0.0276 |
Corner Radius (mm) | 0.70 |
Hole Diameter (Decimal Inch) | 0.1550 |
Rake | Positive |
Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
Primary Workpiece Material Code | P; S; K; M |
Secondary Workpiece Material | Non-Ferrous Metal |
Secondary Workpiece Material Code | N |
Ansi Code | 3IR8RD |
Iso Code | 3IR8RD |
Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.055 |
Face of Insert to Tip Centerline (Decimal Inch) | 0.055 |
Number of Teeth Per Side | 1 |
Cutting Direction | Right Hand |
Manufacturers Catalog Number | 3IR8RD |
Relief Angle | 0.000 |
Coating Classification | PVD |
Thickness (Decimal Inch - 4 Decimals) | 0.1350 |
Coating/Finish | TiAlN |
