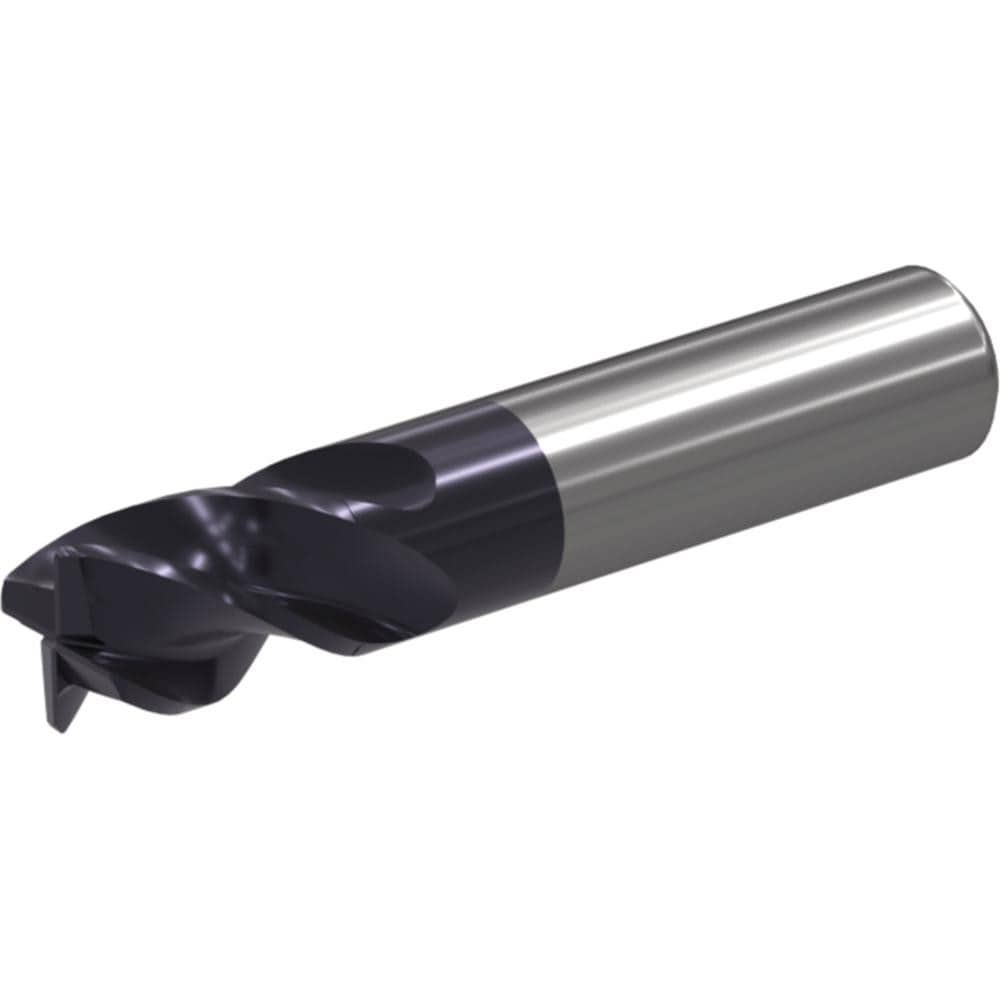

Brand: Widia / Part #: 6945659

Brand: Widia / Part #: 6945659


Item #: 33970278
Brand: Widia
Model #: 6945659

Product Specifications

Mill Diameter (Inch) 5/16
Coating/Finish TiAlN
End Mill Material Solid Carbide
Number Of Flutes 4
Overall Length (Inch) 2
Length of Cut (Inch) 1/2
Cutting Direction Right Hand
Mill Diameter (Decimal Inch) 0.3125
Flute Direction Right Hand
Overall Length (Decimal Inch) 2.0000
Chipbreaker No
Length Of Cut (Decimal Inch - 4 Decimals) 0.5000
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Minimum Helix Angle 37.00
Maximum Helix Angle 37.00
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; H; K; M
Secondary Workpiece Material High Temperature Alloy
Secondary Workpiece Material Code S
Material Grade WU20PE
Series W401
$25.98
