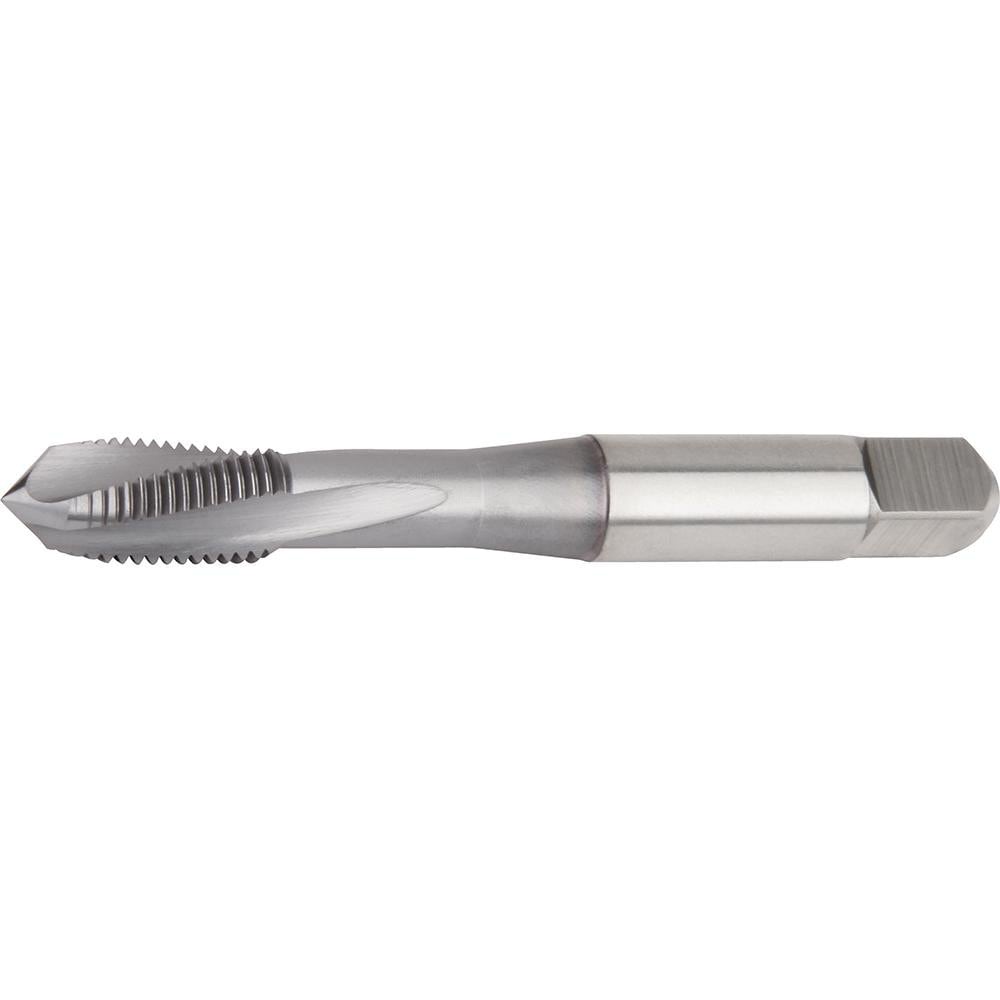

Brand: Widia / Part #: 5705634

Brand: Widia / Part #: 5705634


Item #: 18116897
Brand: Widia
Model #: 5705634

Product Specifications

Thread Size (Inch) 5/16-24
Chamfer Plug
Thread Limit H3
Class Of Fit 3B
Number Of Flutes 3
Material Powdered Metal
Threads per Inch 24
Thread Direction Right Hand
Flute Direction Left Hand
Coating/Finish Oxide; Nitride
Coolant Through No
Thread Length (Decimal Inch) 0.4900
Overall Length (Decimal Inch) 2.7300
Thread Depth (Decimal Inch) 1.1500
Thread Pitch (Decimal Inch) 0.0417
Thread Standard UNF
Material Grade WS39MG
Shank Diameter (Decimal Inch) 0.3180
Square Size (Decimal Inch) 0.2360
Material Application High-Temperature Alloy
Series GT90
$21.66
