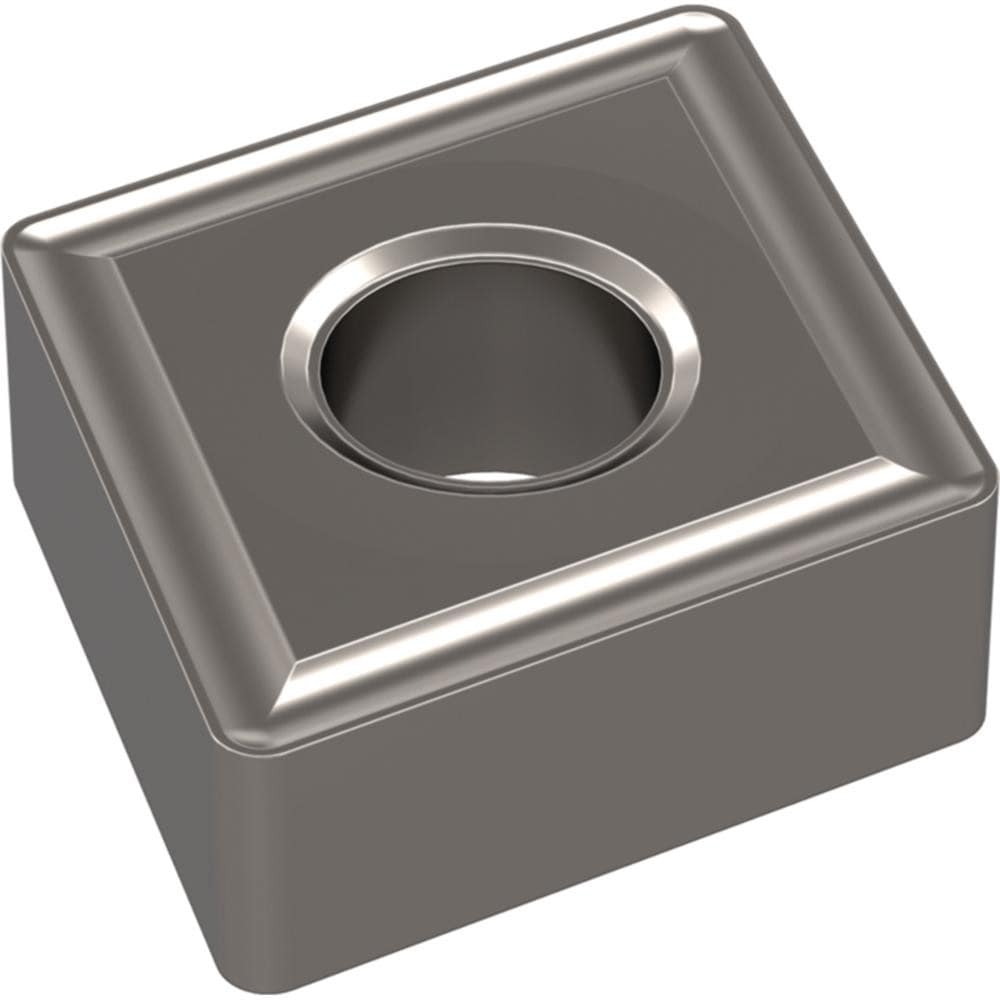

Brand: Widia / Part #: 2559307

Brand: Widia / Part #: 2559307


Item #: 96405931
Brand: Widia
Model #: 2559307

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 644
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN4000
Corner Radius (Decimal Inch) 0.0630
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3122
Maximum Depth of Cut (Decimal Inch) 0.3808
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7616
Number Of Cutting Edges 8
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code CNMG644
Iso Code CNMG190616
Manufacturers Catalog Number CNMG644
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker None
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$21.99
