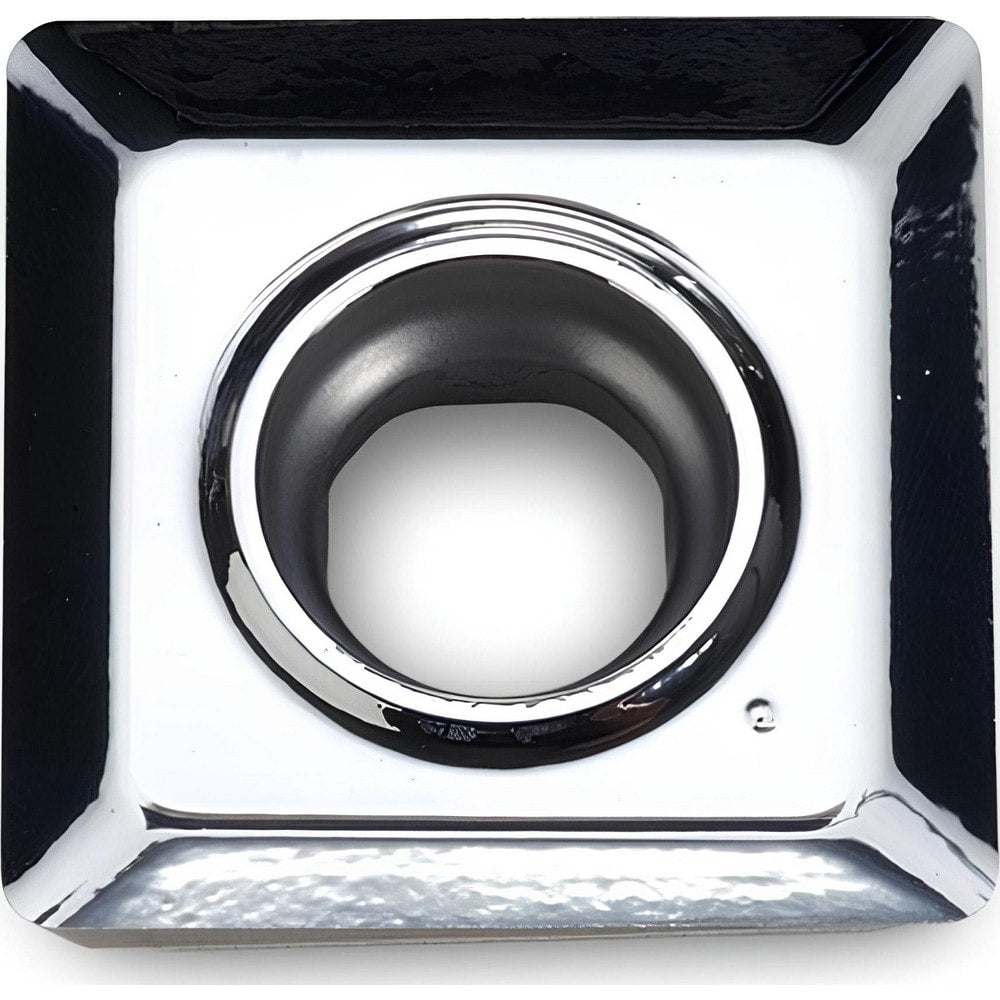

Brand: Ingersoll Cutting Tools / Part #: 5840741
Item #: 93596625
Brand: Ingersoll Cutting Tools
Model #: 5840741
Product Specifications
| Insert Style | SEHT |
| Insert Size Code | 130408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN10K |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.5390 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | SEHT |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | SEHT130408FR-P S |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | SEHT130408FR-P S IN10K |
| Cutter Series Compatibility | 5J2H |
| Chip Breaker | P |
| Cutting Direction | Neutral |
| Shape | Square |
| Length of Cut (mm) | 10.9200 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5390 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.5390 |
