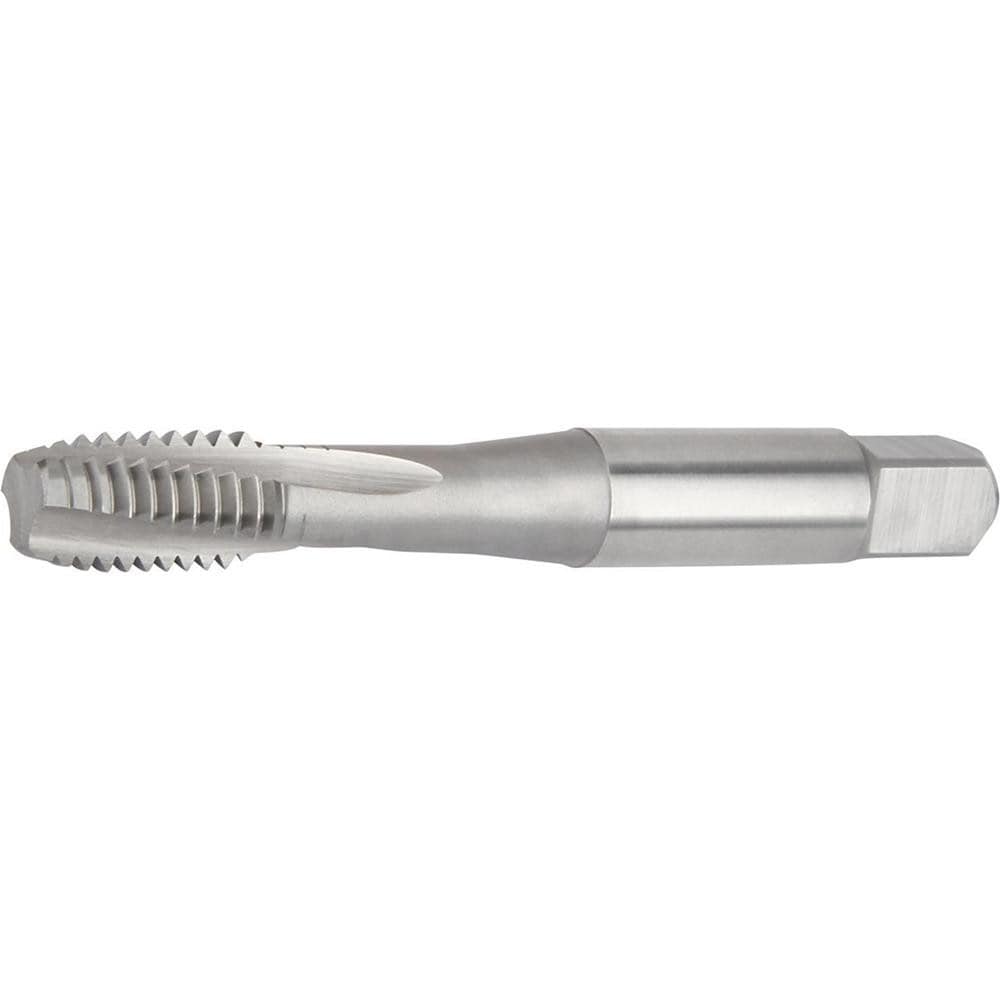

Brand: Widia / Part #: 5565147

Brand: Widia / Part #: 5565147


Item #: 97190607
Brand: Widia
Model #: 5565147

Product Specifications

Thread Size (Inch) 1/4-20
Chamfer Modified Bottoming
Thread Limit H3
Class Of Fit 3B
Number Of Flutes 3
Material Powdered Metal
Threads per Inch 20
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish Nitride
Coolant Through No
Thread Length (Decimal Inch) 0.4400
Overall Length (Decimal Inch) 2.5000
Thread Depth (Decimal Inch) 1.0100
Thread Pitch (Decimal Inch) 0.0500
Thread Standard UNC
Material Grade WS30MG
Shank Diameter (Decimal Inch) 0.2550
Square Size (Decimal Inch) 0.1890
Material Application High-Temperature Alloy
Series GT-Ti
$27.81
