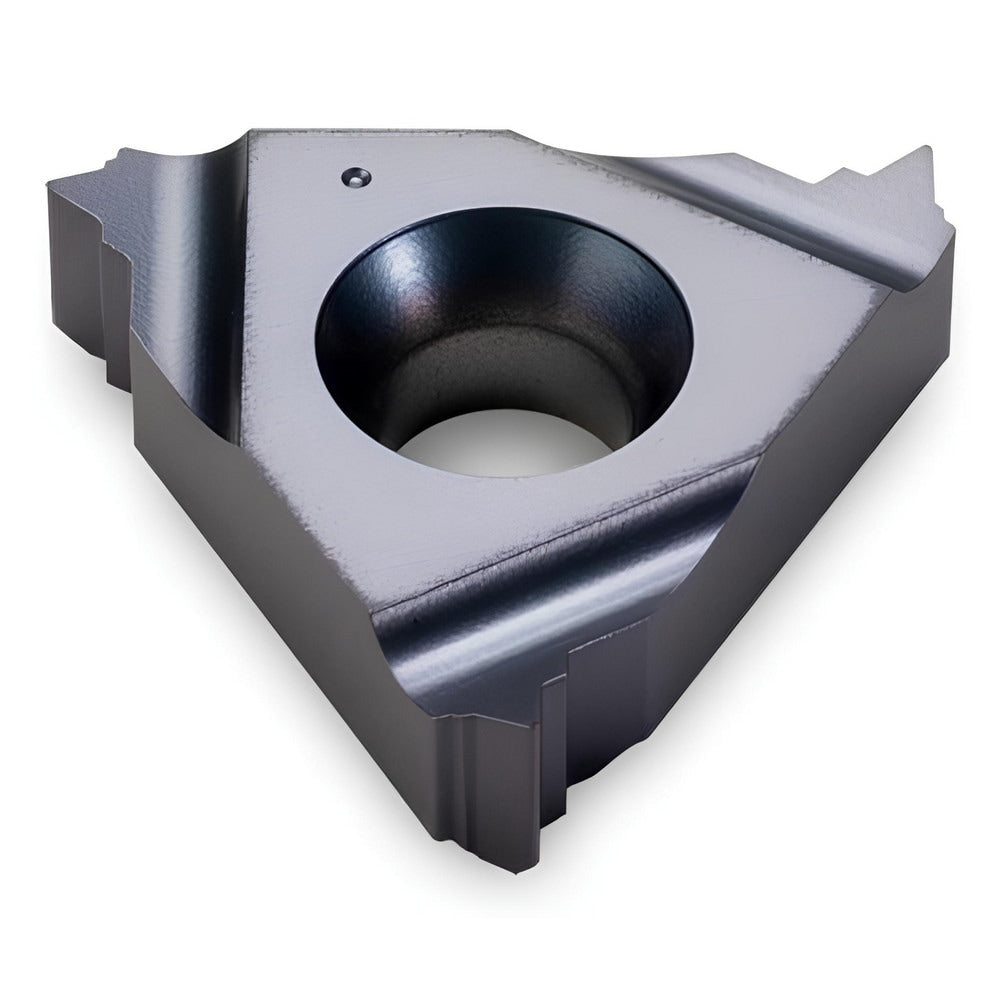

Brand: Ingersoll Cutting Tools / Part #: 5902515

Brand: Ingersoll Cutting Tools / Part #: 5902515


Item #: 06526685
Brand: Ingersoll Cutting Tools
Model #: 5902515

Product Specifications

Insert Style 16IR
Insert Size Code 16
Insert Material Carbide
Manufacturer Grade TT9030
Thread Type Internal
Pitch (mm) 1.81
Thread Standard NPTF 60 Degree
Insert Hand Right Hand
Included Angle 60.00
Chipbreaker None
Series NPTF Regular Type
Coating Process PVD
Inscribed Circle (Inch) 3/8
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Secondary Workpiece Material Hard Material; Non-Ferrous Metal; Super-alloys & Titanium
Secondary Workpiece Material Code S; H; N
Ansi Code 16IR14NPTF
Iso Code 16IR14NPTF
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.047
Face of Insert to Tip Centerline (Decimal Inch) 0.035
Number of Teeth Per Side 1
Cutting Direction Right Hand
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1430
Coating/Finish TiAlN
$26.98
