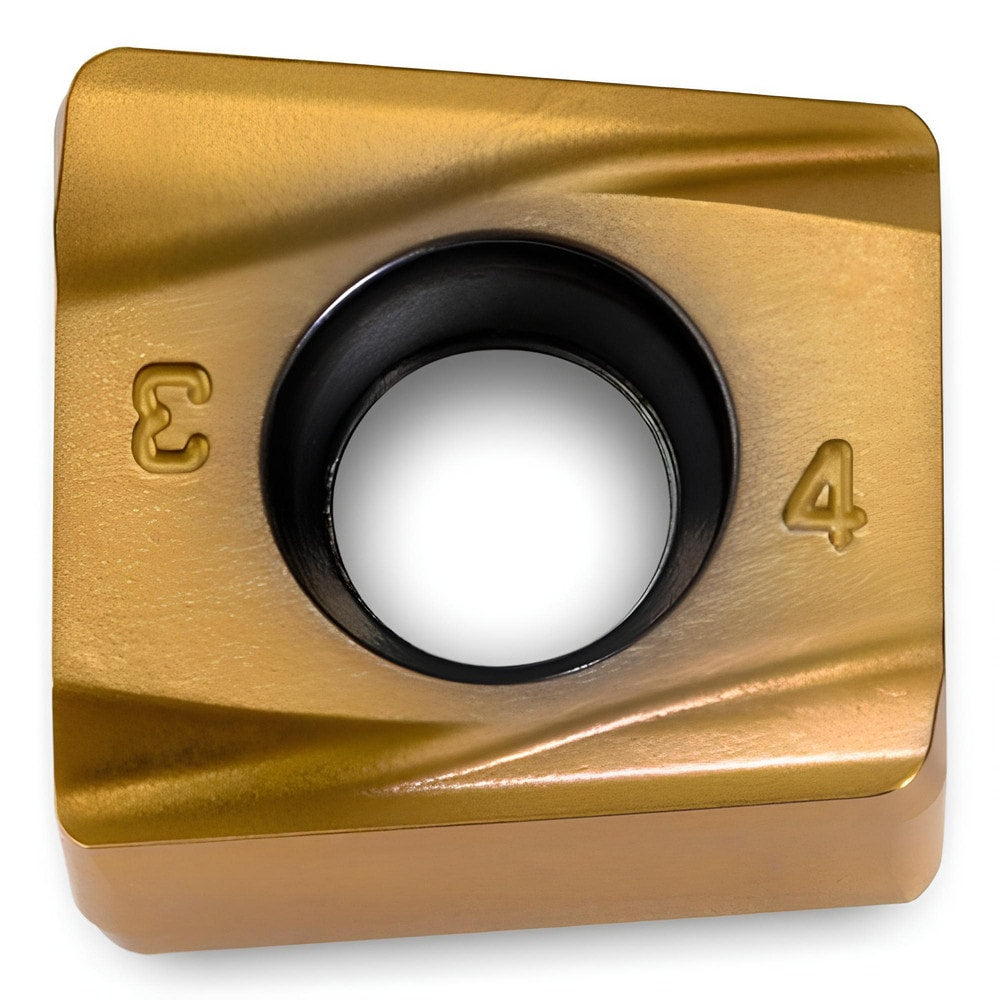

Brand: Ingersoll Cutting Tools / Part #: 6313335

Brand: Ingersoll Cutting Tools / Part #: 6313335


Item #: 67302174
Brand: Ingersoll Cutting Tools
Model #: 6313335

Product Specifications

Insert Style ANED
Insert Size Code 1207
Insert Material Carbide
Manufacturer Grade IN2510
Inscribed Circle (Decimal Inch) 0.4130
Corner Radius (Inch) 1/32
Insert Hand Right Hand
Series ANED
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.0200
Number Of Cutting Edges 4
Insert Shape Rectangle
Rake Negative
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code ANED1207-ML
Rake Angle 0.000
Manufacturers Catalog Number ANED1207-ML IN2510
Cutter Series Compatibility TAQ3
Chip Breaker ML
Cutting Direction Right Hand
Shape Rectangle
Length of Cut (mm) 0.5100
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.4130
Thickness (Decimal Inch - 4 Decimals) 0.3580
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.4720
$27.77
