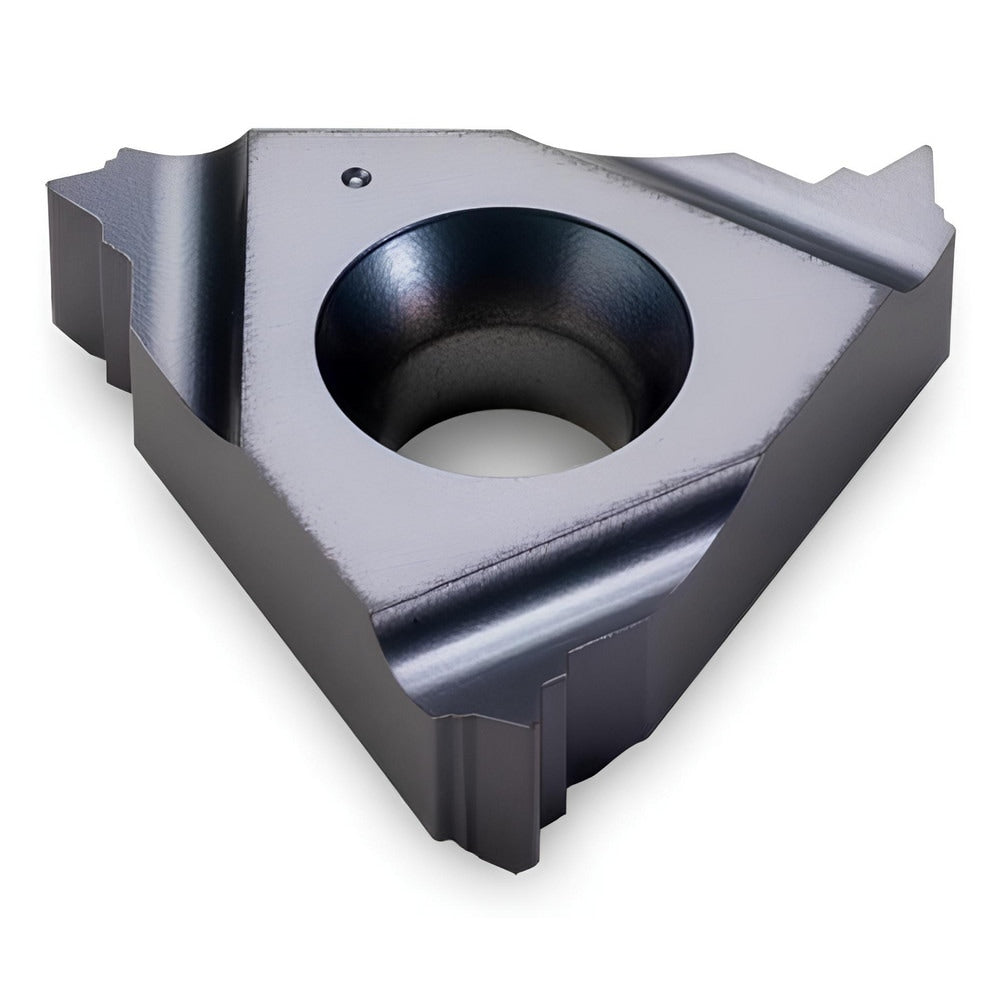

Brand: Ingersoll Cutting Tools / Part #: 5902159

Brand: Ingersoll Cutting Tools / Part #: 5902159


Item #: 07014574
Brand: Ingersoll Cutting Tools
Model #: 5902159

Product Specifications

Insert Style 11IR
Insert Size Code 11
Insert Material Carbide
Manufacturer Grade TT9030
Thread Type Internal
Pitch (mm) 1.06
Thread Standard UNJ 60 Degree
Insert Hand Right Hand
Included Angle 60.00
Chipbreaker None
Series UNJ Regular Type
Coating Process PVD
Inscribed Circle (Inch) 1/4
Corner Radius (Decimal Inch) 0.0070
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Secondary Workpiece Material Hard Material; Non-Ferrous Metal; Super-alloys & Titanium
Secondary Workpiece Material Code S; H; N
Ansi Code 11IR24UNJ
Iso Code 11IR24UNJ
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.031
Face of Insert to Tip Centerline (Decimal Inch) 0.028
Number of Teeth Per Side 1
Cutting Direction Right Hand
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1260
Coating/Finish TiAlN
$26.98
