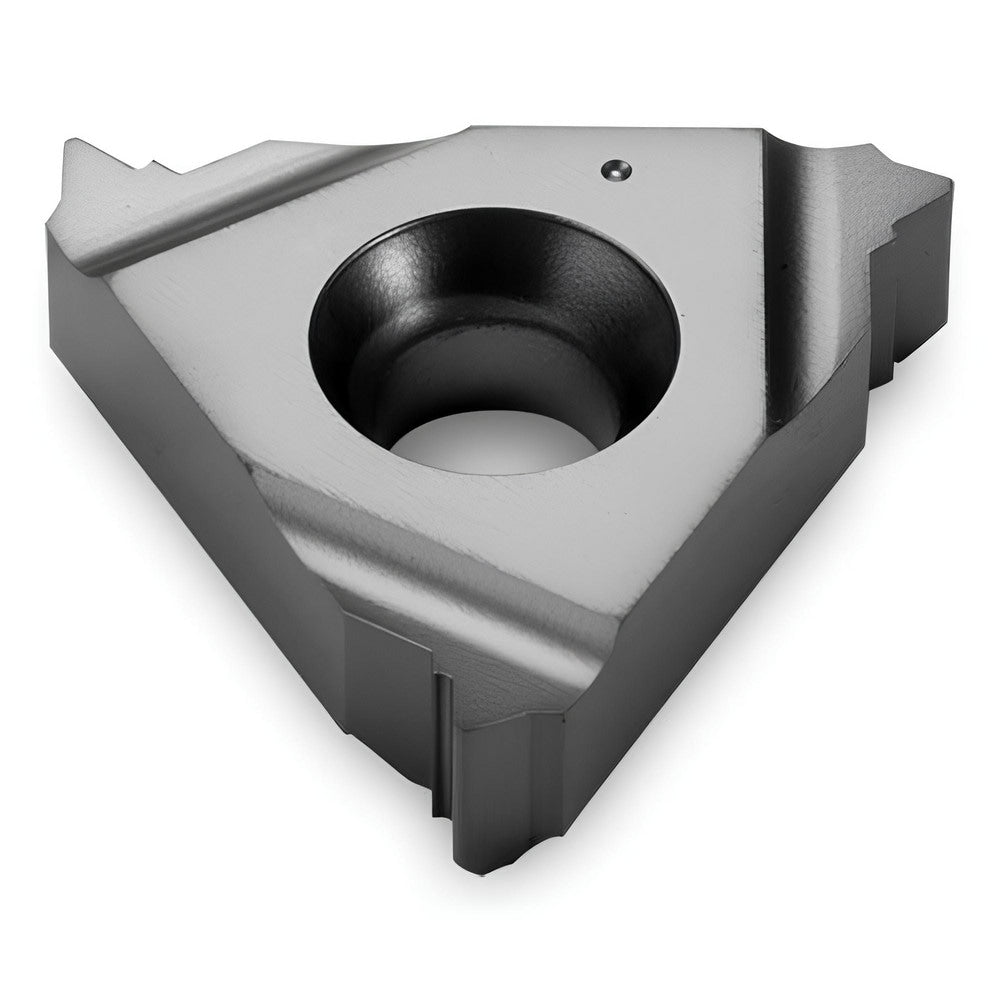

Brand: Ingersoll Cutting Tools / Part #: 5901975
Item #: 06620652
Brand: Ingersoll Cutting Tools
Model #: 5901975
Product Specifications
Insert Style | 11ER |
Insert Size Code | 11 |
Insert Material | Carbide |
Manufacturer Grade | TT9030 |
Thread Type | External |
Pitch (mm) | 1.06 |
Thread Standard | UNJ 60 Degree |
Insert Hand | Right Hand |
Included Angle | 60.00 |
Chipbreaker | None |
Series | UNJ Regular Type |
Coating Process | PVD |
Inscribed Circle (Inch) | 1/4 |
Corner Radius (Decimal Inch) | 0.0070 |
Rake | Positive |
Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
Primary Workpiece Material Code | P; K; M |
Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-alloys & Titanium |
Secondary Workpiece Material Code | S; H; N |
Ansi Code | 11ER24UNJ |
Iso Code | 11ER24UNJ |
Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.031 |
Face of Insert to Tip Centerline (Decimal Inch) | 0.028 |
Number of Teeth Per Side | 1 |
Cutting Direction | Right Hand |
Coating Classification | PVD |
Thickness (Decimal Inch - 4 Decimals) | 0.1260 |
Coating/Finish | TiAlN |
