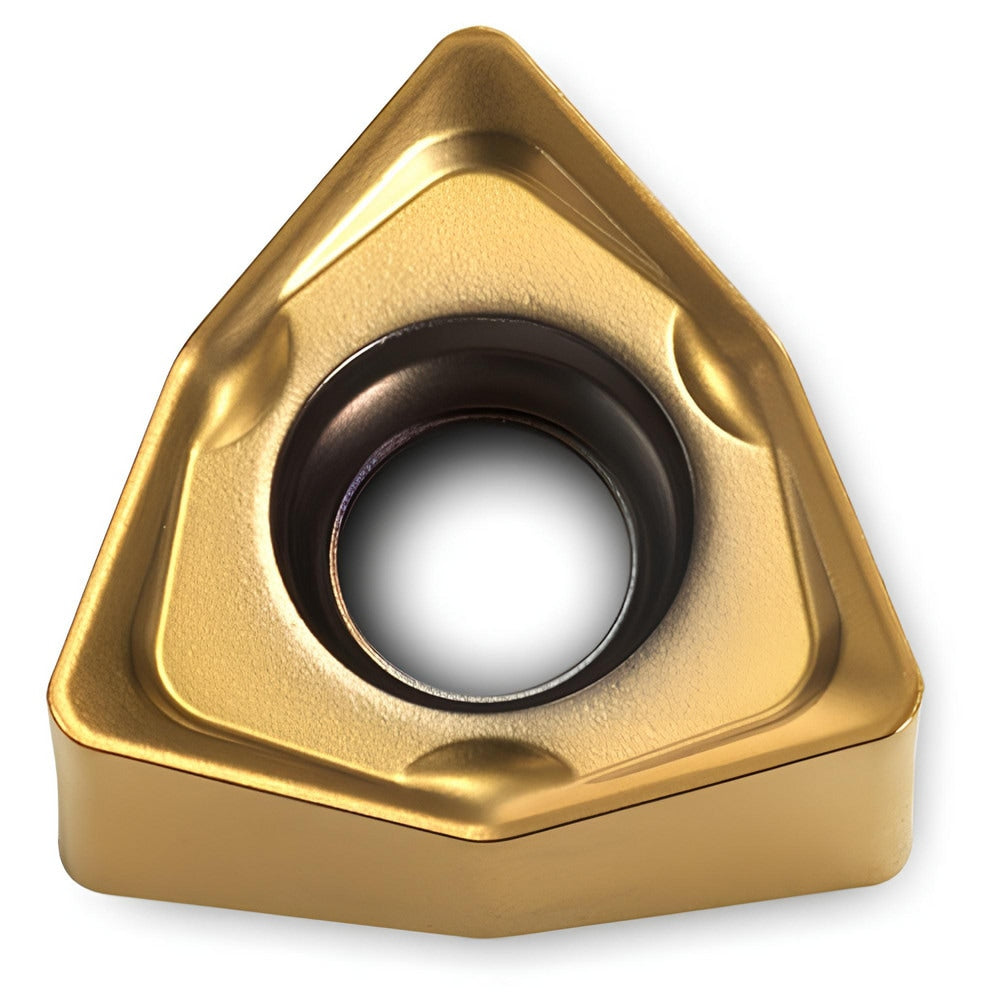

Brand: Ingersoll Cutting Tools / Part #: 6164859

Brand: Ingersoll Cutting Tools / Part #: 6164859


Item #: 33580135
Brand: Ingersoll Cutting Tools
Model #: 6164859

Product Specifications

Insert Style WNMU
Insert Size Code 060608
Insert Material Carbide
Manufacturer Grade IN6535
Inscribed Circle (Decimal Inch) 0.3700
Corner Radius (Inch) 1/32
Insert Hand Neutral
Series WNMU
Coating Process MTCVD
Maximum Depth of Cut (Decimal Inch) 0.2300
Number Of Cutting Edges 6
Insert Shape Trigon
Rake Negative
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium
Primary Workpiece Material Code S; M
Ansi Code WNMU060608N
Rake Angle 0.000
Manufacturers Catalog Number WNMU060608N IN6535
Cutter Series Compatibility 1WJ1F; FHU; WJ5F
Chip Breaker None
Cutting Direction Neutral
Shape Trigon
Length of Cut (mm) 5.8400
Insert Holding Method Screw
Coating Classification CVD
Single or Double Sided Insert Double
Coating/Finish TiCN; TiN; Al2O3
Thickness (Decimal Inch - 4 Decimals) 0.2440
Multi-Use Tool Yes
$28.02
