Brand: Ingersoll Cutting Tools / Part #: 5902170

Brand: Ingersoll Cutting Tools / Part #: 5902170


Item #: 07136310
Brand: Ingersoll Cutting Tools
Model #: 5902170

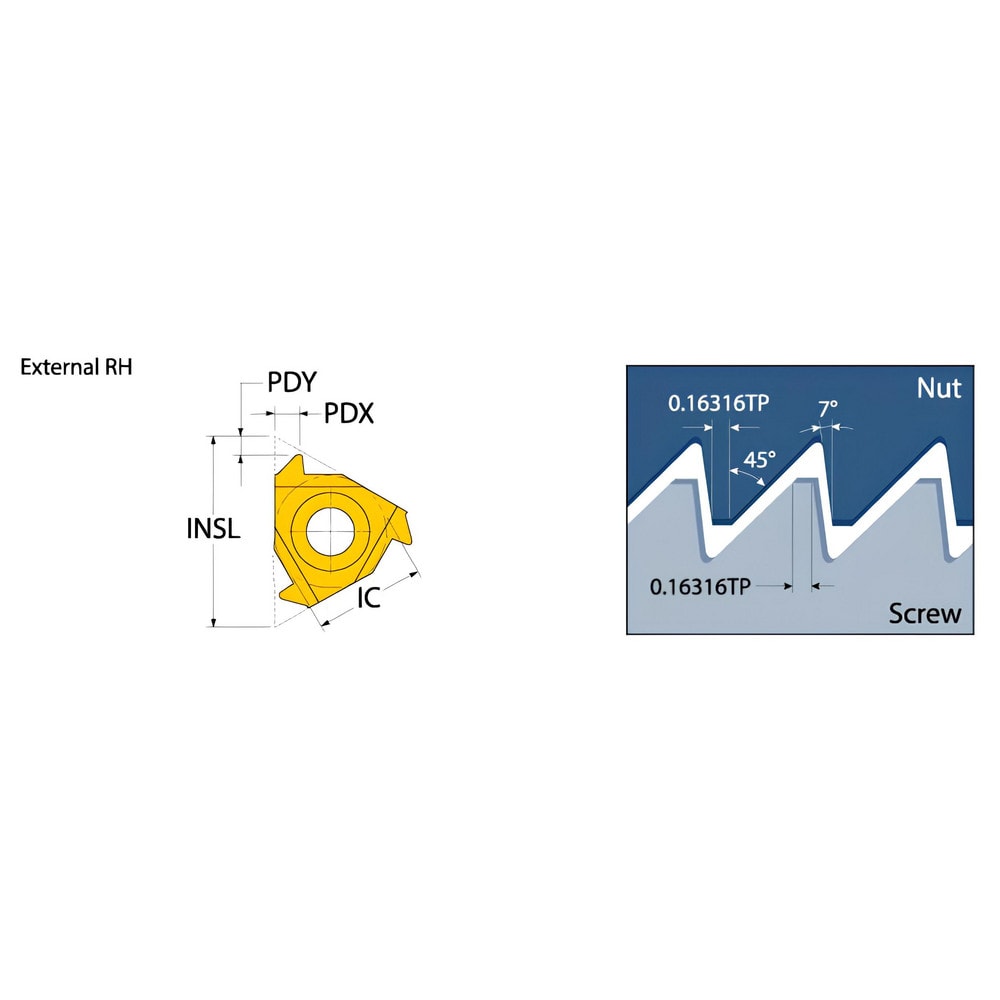

Product Specifications

Insert Style 16EL
Insert Size Code 16
Insert Material Carbide
Manufacturer Grade TT9030
Thread Type External
Pitch (mm) 2.12
Thread Standard American Buttress
Insert Hand Left Hand
Included Angle 45.00
Chipbreaker None
Series American Buttress Regular Type
Coating Process PVD
Inscribed Circle (Inch) 3/8
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Secondary Workpiece Material Hard Material; Non-Ferrous Metal; Super-alloys & Titanium
Secondary Workpiece Material Code S; H; N
Ansi Code 16EL12ABUT
Iso Code 16EL12ABUT
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.079
Face of Insert to Tip Centerline (Decimal Inch) 0.055
Number of Teeth Per Side 1
Cutting Direction Left Hand
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1430
Coating/Finish TiAlN
$26.98
