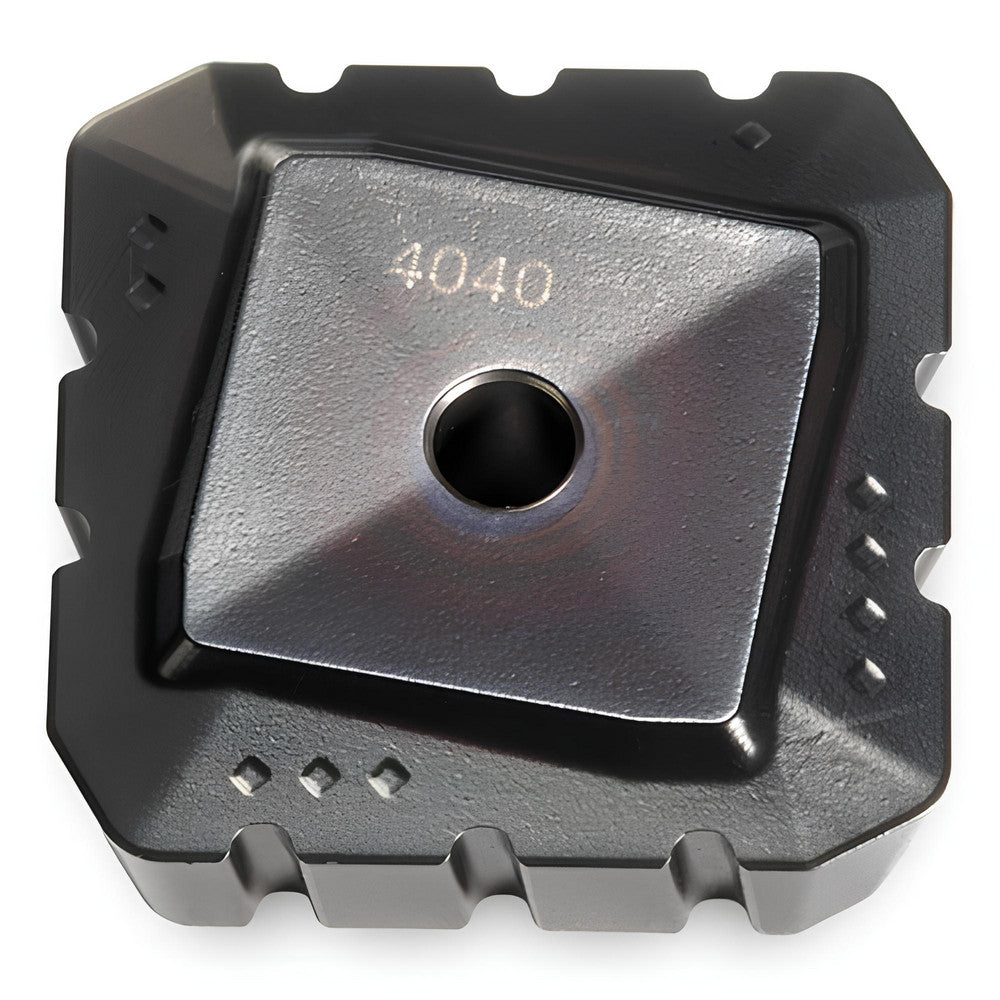

Brand: Ingersoll Cutting Tools / Part #: 2908409
Item #: 67327817
Brand: Ingersoll Cutting Tools
Model #: 2908409
Product Specifications
| Insert Style | ZPKN |
| Insert Size Code | 2007 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4040 |
| Inscribed Circle (mm) | 20.00 |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Right Hand |
| Series | ZPKN |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 15.90 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | ZPKN2007DPTR-HD A |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | ZPKN2007DPTR-HD A IN4040 |
| Cutter Series Compatibility | 5C2M |
| Chip Breaker | HD |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Length | 20.00 |
| Width (Mm - 2 Decimals) | 20.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2760 |
| Multi-Use Tool | No |
