![Brand: Ingersoll Cutting Tools / Part #: 6170053](http://exactindustrialsupply.com/cdn/shop/files/6732725-21_1024x1024.jpg?v=1698304539)

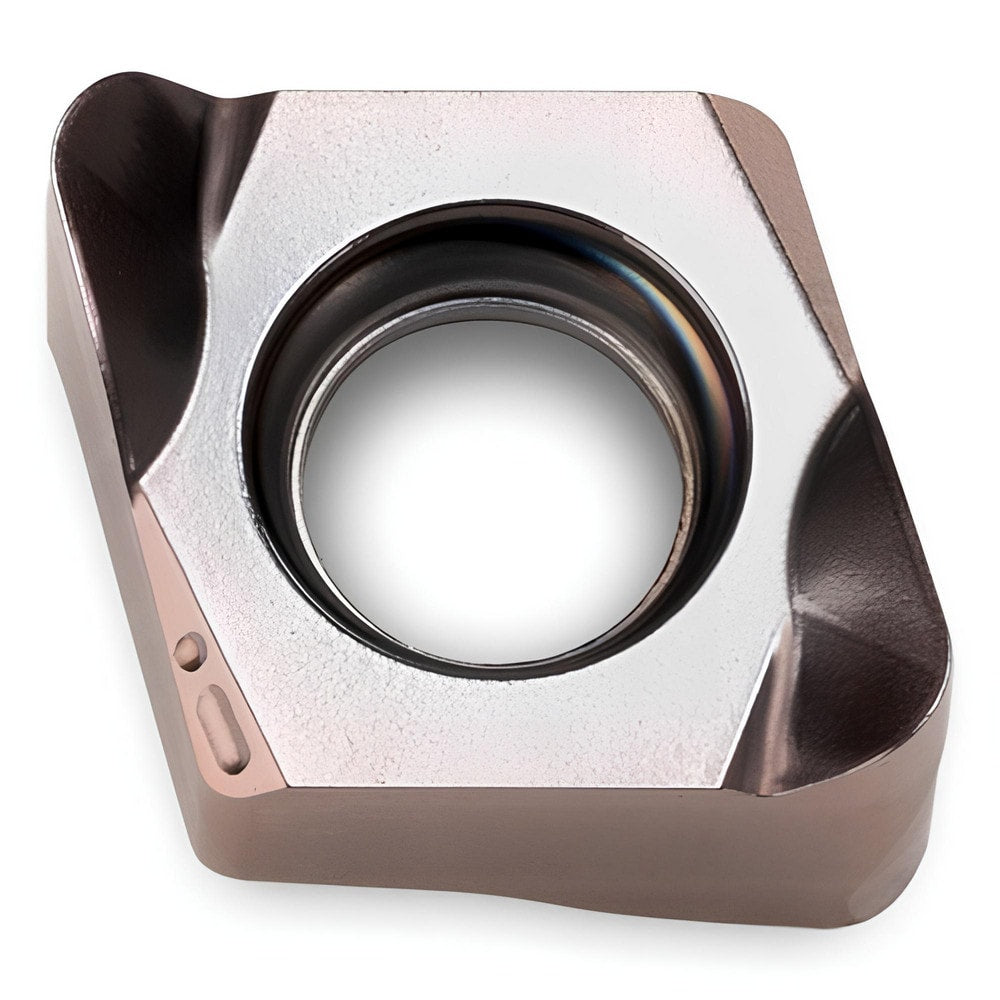

Brand: Ingersoll Cutting Tools / Part #: 6170053
Item #: 67327254
Brand: Ingersoll Cutting Tools
Model #: 6170053
Product Specifications
Insert Style | MNHU |
Insert Size Code | 060310 |
Insert Material | Carbide |
Manufacturer Grade | IN2504 |
Inscribed Circle (Decimal Inch) | 0.2600 |
Corner Radius (Decimal Inch) | 0.0390 |
Insert Hand | Right Hand |
Series | MNHU |
Coating Process | PVD |
Maximum Depth of Cut (Decimal Inch) | 0.0820 |
Number Of Cutting Edges | 4 |
Insert Shape | Parallelogram |
Rake | Negative |
Primary Workpiece Material | Hard Material; Cast Iron; Steel |
Primary Workpiece Material Code | P; H; K |
Ansi Code | MNHU060310R-SW |
Rake Angle | 0.000 |
Manufacturers Catalog Number | MNHU060310R-SW IN2504 |
Cutter Series Compatibility | 1TJ1D; TJ1D; 1TV1D |
Chip Breaker | SW |
Cutting Direction | Right Hand |
Shape | Parallelogram |
Length of Cut (mm) | 2.0800 |
Insert Holding Method | Screw |
Coating Classification | PVD |
Single or Double Sided Insert | Double |
Coating/Finish | TiN; TiAlN |
Included Angle Degree | 86 |
Width (Decimal Inch - 4 Decimals) | 0.2600 |
Thickness (Decimal Inch - 4 Decimals) | 0.1850 |
Multi-Use Tool | No |
Length (Decimal Inch - 4 Decimals) | 0.2600 |
