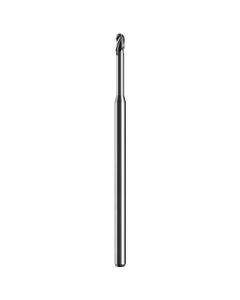

09592 .120 3FL BN ENDMILL
Item #: DD9009592
Brand: KYOCERA SGS Precision Tools
Model #: 09592
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.12″ |
| Neck Length (LN) | 0.36″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | 3D |
| Depth of Cut Maximum (APMX) | 0.18″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Uncoated |
| Body Material | Carbide |
| Flute Count (NOF) | 3 |
| Series/List # | M3B |
| Flute Helix Angle (FHA) | 30 Degrees |
| Shank Length (LS) | 2.14″ |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.18″ |
| Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Single / Double End | Single End |
| Neck Diameter (DN) | 0.042″ |
