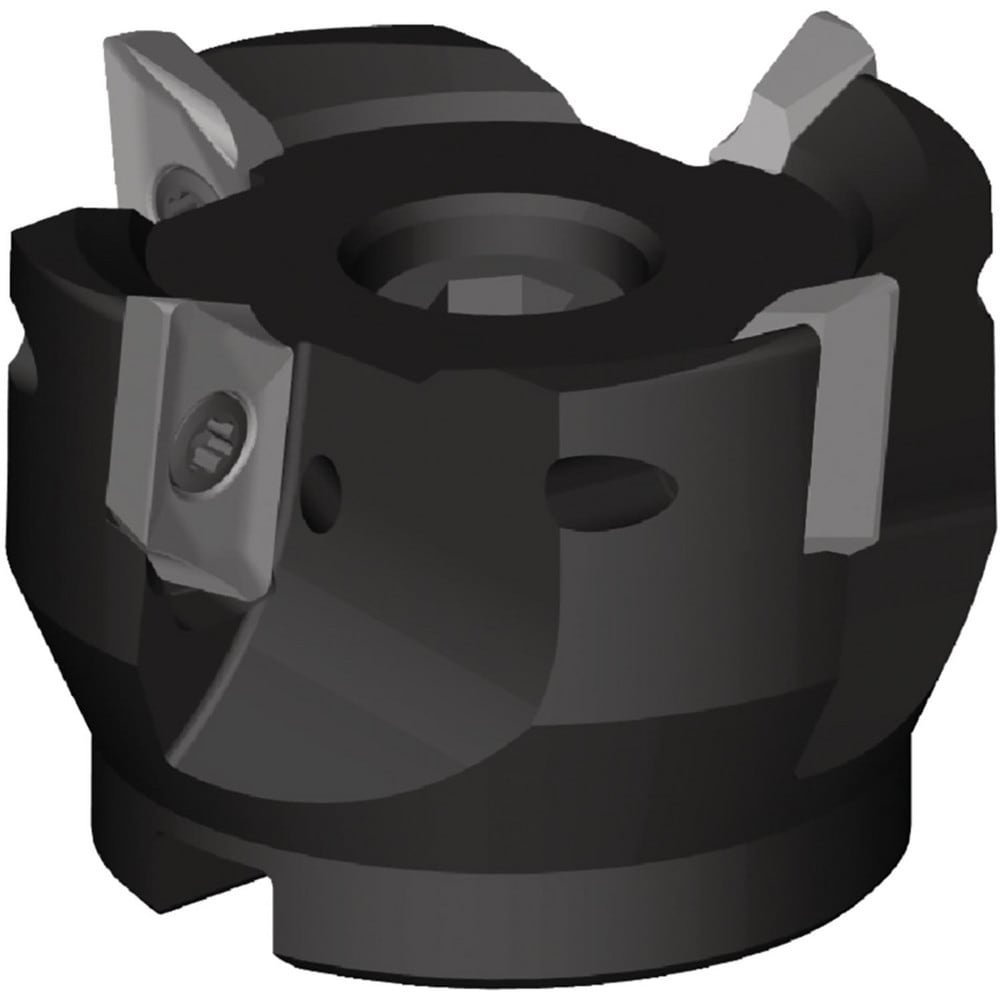

Brand: Widia / Part #: 5363220
Item #: 09975285
Brand: Widia
Model #: 5363220
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 16.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | XD..16 |
| Maximum Ramping Angle | 4.4 |
| Cutter Style | VHSC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | VHSC |
| Maximum Body Diameter (mm) | 29.00 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Keyway Width (mm) | 12.48 |
| Hub Diameter (mm) | 55.000 |
| Maximum RPM | 22500.000 |
| Tool Application | Facing; Ramping; Shouldering; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Number of Adjustable Pockets | 0 |
| ISO Number | VHSC080Z05S27XD16 |
| Complete Insert Compatibility | XD..16 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VHSC080Z05S27XD16 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
