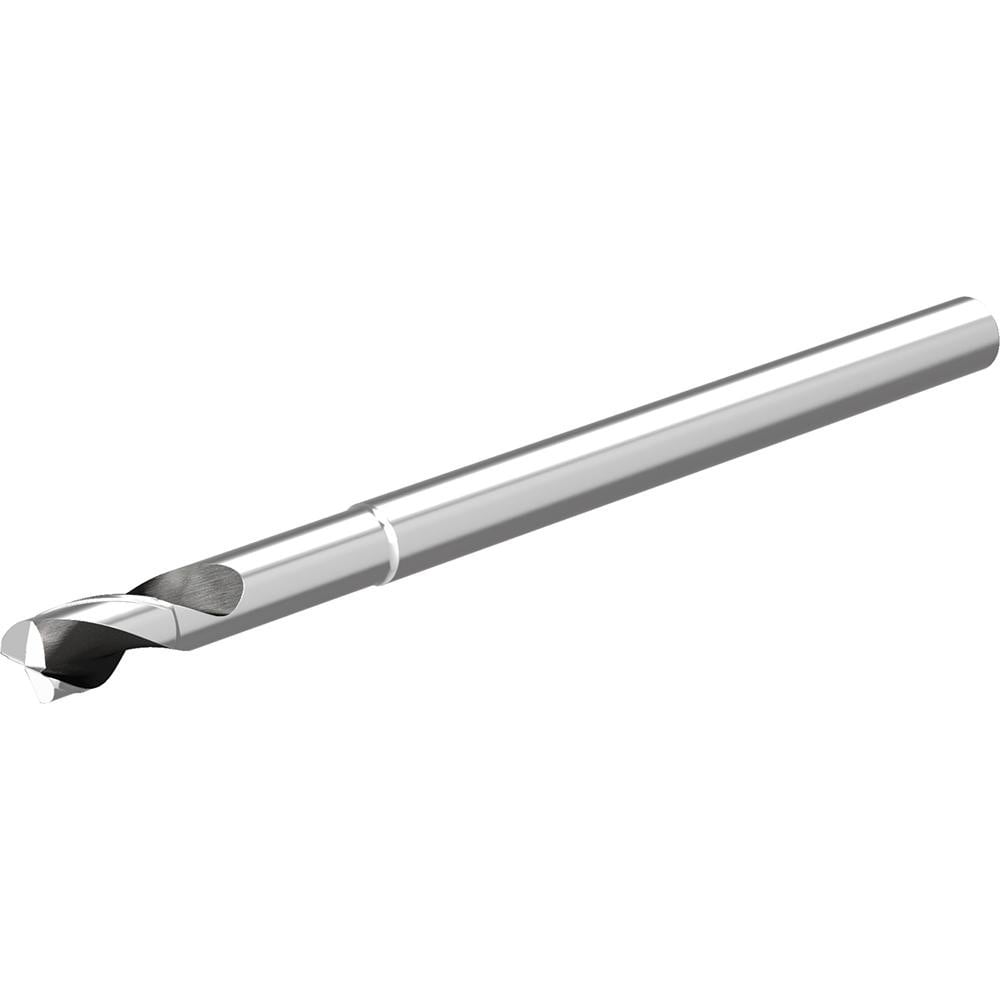

Brand: Widia / Part #: 6859695

Brand: Widia / Part #: 6859695


Item #: 98113012
Brand: Widia
Model #: 6859695

Product Specifications

Mill Diameter (Inch) 1/2
Corner Radius (Decimal Inch) 0.0600
Coating/Finish Uncoated
End Mill Material Solid Carbide
Number Of Flutes 2
Single Or Double End Single
Overall Length (Inch) 4-1/2
Length of Cut (Inch) 5/8
Cutting Direction Right Hand
Coolant Through No
Pitch Normal
Mill Diameter (Decimal Inch) 0.5000
Flute Direction Right Hand
Helix Angle 33
Overall Length (Decimal Inch) 4.5000
Chipbreaker No
End Type Corner Radius
Length Of Cut (Decimal Inch - 4 Decimals) 0.6250
Length Type Extended
Flute Type Helical
Extended Reach Yes
Shank Type Cylindrical
Centercutting Yes
Variable Index No
Variable Helix No
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 0.5000
Shank Diameter (Inch) 1/2
Neck Diameter (Decimal Inch) 0.4700
Reach Length (Decimal Inch) 2.5000
Reach Length (Inch) 2-1/2
Minimum Helix Angle 33
Maximum Helix Angle 33
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Series 2AF9
Coating Classification Uncoated
Helix Style Medium
$128.94

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
