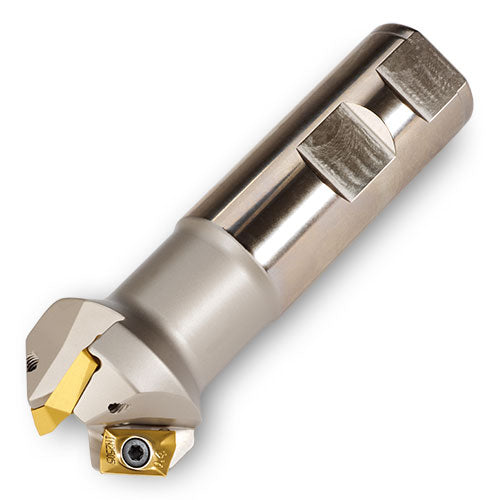

12Q1R020044W5R00
Item #: IC523027428
Brand: Ingersoll
Model #: 3027428
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.658″ |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Cutting Diameter (DC) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 0.984″ |
| Cutting Diameter Maximum (DCX) | 1.658″ |
| Body Diameter (BD) | 1.701″ |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 0.114″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 3.937″ |
| Body Material | Steel |
