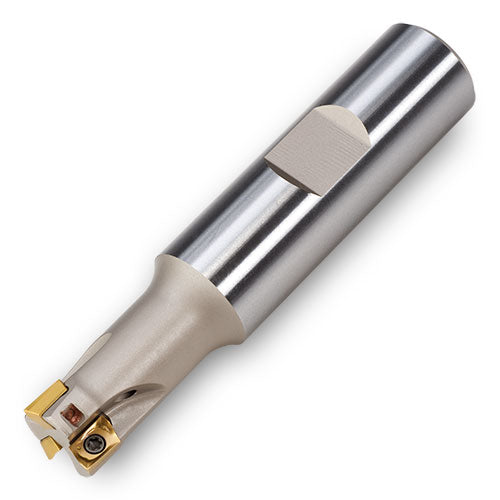

12J1D012020W3R00
Item #: IC523018517
Brand: Ingersoll
Model #: 3018517
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Diameter (DC) | 12 mm |
| Usable Length (LU) | 20 mm |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 5.7 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 80 mm |
| Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Protruding Length (LPR) | 32 mm |
